Location:
Lincolnshire, IL
Manufacturer:
N/A
Weight:
65,000 Lbs.

Specifications

Condition:
used
Year:
1986
Stock number:
25195
Gear box ratio:
87.5:1
Number of rolls:
2
Diameter of rolls:
26"
Approximate weight:
65,000 Lbs.
Effective rolling width:
22-3/4"
Overall length of rolls:
26-3/4"
Rolling pressure (1200 kn):
135 Tons
Dc variable speed drive (30 kw):
40 HP, 1760 RPM
Subcategory:

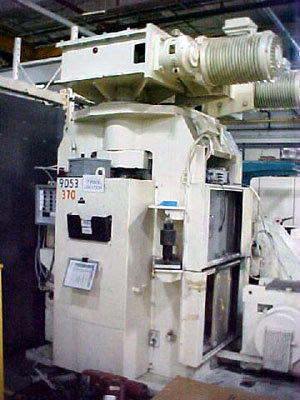

Calenders

Description

Serial No. 051/1149355/3400 New - 1986
SPECIFICATIONS:
EQUIPPED WITH:
Geared Micrometer Adjustable Rollers (MT2 1182 Nm, n2 52/13 Min)
Micro-Epsilon Non-Contacting Displacement Transducer (4-Zone) with
Compensation (Lin, Gain, Zero)
(2) In Crate Spare Rolls (5750 kg each)
30" Pre-Feed Material Oiler Lubrication, 6" Dia. Rolls, Baklor 3 HP, Gear
Drive
Electrical Control Panel
All Available Drawings and Machine Documentation
*Preliminary Specifications Subject to Verification.
