Location:
Lincolnshire, IL
Manufacturer:
Koch
Weight:
2,500 Lbs.

Specifications

Condition:
used
Year:
1980
Stock number:
35346
Taper:
#0 or #1
Hob speed:
30 - 1200 RPM
Coolant pump:
1/4 HP, 3450 RPM
Hydraulic motor:
1.5 HP
Main drive motor:
2 HP, 1200 RPM
Work spindle bore:
1-1/32"
Approximate weight:
2,500 Lbs.
Hob arbor, straight:
3/4"
Approximate dimensions:
65.5"L x 46.5"W x 57"H
Hob diameter - maximum:
2-1/16"
Index worm speed - maximum:
1800 RPM
Work spindle pilot diameter:
1.750"
Hob spindle - interchangable:
Arbor Type
Rated work diameter - maximum:
6"
Swivel angle setting - maximum:
60 Deg. R-90 Deg. L
Travel of hob carriage - maximum:
10-1/2"
Dp and diameter in steel, 1 cut - maximum:
48 DP - 6" Diameter
Dist. work spdl face to tail center - maximum:
15-3/4"
Dist. work spdl face to centerline of hob spdl-maximum:
12-3/4"
Dist. work spdl face to centerline of hob spdl-minimum:
2-1/4"
Dist. centerline of work spdl to bottom of overarm-maximum:
3.375"
Dist. centerline of work spdl to bottom of overarm-minimum:
0.25"

Description

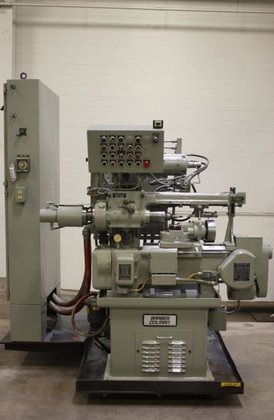

Serial No. 5375 New - 1980
Rebuilt by Bourn & Koch
SPECIFICATIONS:
EQUIPPED WITH:
Automatic Cycle, Hob Shift Selector Switch
Standard Universal Hob Head
Triple Thread Index
Power Clamping
Tailstock
Automatic Lubrication System
Miscellaenous Change Gears
Coolant System
*Preliminary Specifications Subject to Verification.
