Location:
Lincolnshire, IL
Weight:
5,000 Lbs.

Specifications

Condition:
used
Year:
1989
Stock number:
30258
Bore:
3.150"
Width:
4.921"
Electrical:
480V / 3PH / 50HZ
Approximate weight:
5,000 Lbs.
Grinding wheel motor:
7HP
Bar grinding diameter:
0.0196" - 0.984"
Wheel width - maximum:
4.921"
Actual dimensions - grinder:
87"L x 58"W x 77"H
Grinding diameter - maximum:
1.18"
Grinding diameter - minimum:
0.0196"
Grinding wheel speeds - step 1:
1050RPM
Grinding wheel speeds - step 2:
2100RPM
Grinding wheel diameter - maximum:
11.81"
Actual dimensions - coolant system:
62"L x 25"W x 33"H
Actual dimensions - hydraulic pump:
31"L x 25"W x 33"H
Regulating wheel diameter - maximum:
8.858"
Actual dimensions - electrical panel:
54"L x 25"W x 74"H
Regulating wheel speed - infinitely variable:
0 - 444 RPM
Length for infeed grinding (plunge) - maximum:
5"

Description

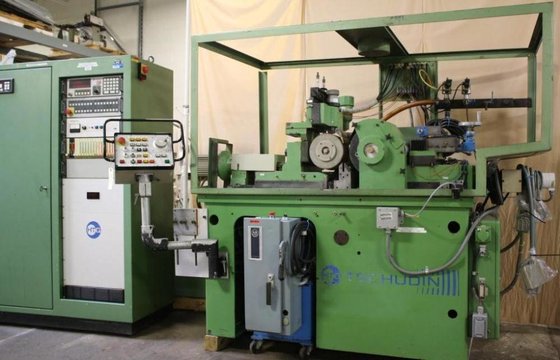

Serial No. 88321-9 New - 1989
SPECIFICATIONS:
EQUIPPED WITH:
Marposs E54 CNC Motion Contol
Manual Push Button Pendant Control
Regartron RegaDrives
Slo-Syn Synchronous Stepping Motor
Manobalance Dynamic Wheel Balancing System
Norton AX-1440 Diamond Rotary Tool Truing Device
Optimate Digital Counter
Regulating Wheel Dresser
Vogel Central Lubrication System
Monlan Model PBF-10 Coolant Filtration System
Books, Manuals and Drawings
*Preliminary Specifications Subject to Verification.
