Location:
Lincolnshire, IL, USA
Weight:
5,500 Lbs. (2495 Kg.)

Specifications

Condition:
used
Year:
1995
Stock number:
32690
Electrics:
220V / 3 Phase / 60Hz
Live center:
Morse #5
Quill travel:
1.181" (30mm)
Swivel angle:
360 Degrees
Actual weight:
5,500 Lbs. (2495 Kg.)
Internal taper:
Morse #3
Quill diameter:
1.575" (40mm)
Rapid traverse:
1.575" (40mm)
Spindle speeds:
55 - 400 RPM (Infinitely Variable)
Hydraulic motor:
1 HP
Swing over table:
11" (280mm)
Actual dimensions:
110"L x64"W x80"H (2794x1625x2032mm)
Dwell of reversal:
0 - 30 Sec.
Table swivel angle:
+10 to -4 Degrees
Work spindle motor:
0.75 HP
Grinding wheel size:
16"x5"x2"or3-1/8" (400x127x50/80mm)
Wheel spindle motor:
5 HP
Plunge grinding travel:
0.04" (1mm)
Distance between centers:
24" (600mm)
Load on centers - maximum:
320 Lbs. (145 Kg.)
Spindle speeds (3 pulleys):
22,000 / 17,500 / 14,500 RPM
Grinding diameter - maximum:
10.82" (275mm)
Longitudinal speed - variable:
0.03 - 20 FPM (0.1 - 6 MPM)
Internal grinding spindle motor:
1 HP
Work piece weight on chuck - maximum:
130 Lbs. (60 Kg.)
Incremental infeed per table reversal:
0.0002 - .0016" (.005 - .04mm)

Description

Serial No. 95/88-126
New - 1995

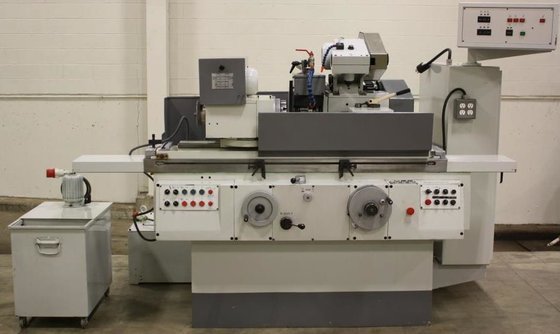

GER Precision Grinders of Spain, (Parts & Service Republic Lagun, California)
SPECIFICATIONS:
Table:
Wheelslide:
Wheelhead:
Workhead:
Tailstock:
Internal Spindle:
Drive Motors:
EQUIPPED WITH:
Electro-Craft Max-430 - Electronic Feed Control
(2) Programable Feedrates, Automatic Switching from Roughing and Finishing at
Pre-Selected Points
Allen-Bradley PowerFlex 4 Sever Drive for Workhead
Swing Down Internal Grinding Spindle
Spark-Out Timer - Number of Passes in Reciprocating (9 Maximum)
Selectable Reverse - at Either or Both Ends
Tail Stock With Rapid-Action Lever and Adjustable-Load Spring
Automatic Lubrication System
Table Monted and Tailstock Wheel Dresser
Self-Contained Hydraulic System
Coolant System
Documentation
*Preliminary Specifications Subject to Verification.
