Location:
Lincolnshire, IL
Grinding Length:
18"
Weight:
1,800 Lbs.

Specifications

Condition:
used
Year:
1998
Serial number:
6261ZVAT98
Stock number:
30160
Electrical:
480V / 3PH / 60HZ
Chuck capacity:
6" x 18"
Wheelhead motor:
1 1/2 HP
Cross axis travel:
6"
Table work surface:
18"L x 6"W
Cross axis feed rate:
30 IPM
Vertical axis travel:
20"
Accuracy - resolution:
0.0001"
Approximate dimensions:
68"L x 48"W x 72"H
Grinding width - maximum:
6"
Longitudinal axis travel:
18"
Grinding length - maximum:
18"
Approximate machine weight:
1,800 Lbs.
Longitudinal axis feed rate:
360 IPM
Wheelhead speed - infinitely variable:
0 - 6200 RPM
Distance between table and grinding wheel:
16"

Description

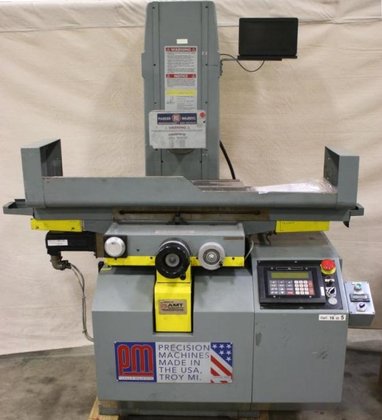

Serial No. 6261ZVAT98 New - 1998
SPECIFICATIONS:
EQUIPPED WITH:
6" x 18" Walker Permanent Magnetic Chuck
Parker Majestic 3 Axis Programmable Control (Version 3.12) with DRO
Whedco Controller Drives
(5) Programmable Cycle Types Include Master as well as Area, Pitch, Dress
and Form Cycles
(2) Jog Speeds for each Axis are Programmable
Incremental Jogging Available for each Axis with 9 User Defined Distances
Lower Elevating Handwheel Slip Ring Dial
Bijur Lubrication System
Manuals and Drawings
*Preliminary Specifications Subject to Verification.
