Location:
Lincolnshire, IL
Manufacturer:
N/A
Weight:
4,000 Lbs.

Specifications

Condition:
used
Year:
1998
Serial number:
P59601
Stock number:
30843
Electrics:
230-460V / 3 Phase / 60Hz
Table size:
12" X 24"
Spindle motor:
3 HP
Spindle speed:
1710 RPM
Approximate weight:
4,000 Lbs.
Rapid traverse rate:
7.5" IPM
Table speed (variable):
10 - 82 FPM
Spindle center to table:
20"
Standard grinding wheel:
12" X 1-1/4" X 3
Grinding capacity - maximum:
12.2" X 25.6"
Incremental downfeed - auto:
0.0001", .0003", .0005"
Automatic crossfeed increment:
0.02" - 0.3"
Vertical handwheel - graduation:
0.0001"
Longitudinal table travel - manual:
28"
Automatic crossfeed travel - maximum:
12.8"
Crossfeed handwheel - per graduation:
0.001"
Crossfeed handwheel - per revolution:
0.2"
Longitudinal table travel - hydraulic:
25.6"

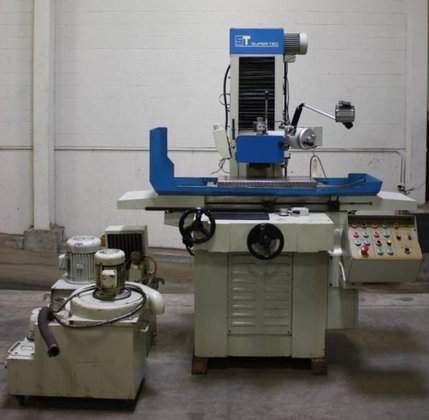

Description

Serial No. P59601 New - 1998
Rebuilt Spindle May 2014
SPECIFICATIONS:
EQUIPPED WITH:
Automatic Incremental Downfeed Operated by Hydraulics w/ (3) Step Selections
Power Rapid Wheelhead Positioning
Hydraulic Table Traverse
12" X 24" Electro-Magnetic Chuck w/ Neutrofier Control
Incremental Wheel Dresser
External Hydraulic System
External Coolant Tank/Pump
Auto Lube System
Super-Precision Direct Drive Spindle (Spindle Rebuilt by, GTI in May of 2013)
*Preliminary Specifications Subject to Verification.
