Location:
Lincolnshire, IL
Manufacturer:
SIP
Capacity:
500kg (1,100 Lbs.)
Weight:
6000 Kg (13,300 Lbs.)

Specifications

Condition:
used
Year:
1999
Stock number:
33476
Electrics:
380V/440V / 3 Phase / 50/60Hz
Table size:
630 X 770mm (24.8" X 30")
Feed motors:
1.15kW (1.5 HP)
Spindle motor:
5kW (6.7 HP)
Spindle taper:
40 ISO
Quill diameter:
95mm (3.7")
Table t-slots (6):
14mm (.55")
Approximate weight:
6000 Kg (13,300 Lbs.)
Table travel speeds:
800mm/min. (31.5 IPM)
Table weight capacity:
500kg (1,100 Lbs.)
Approximate dimensions:
2300 X 2700 X 2400mm(91"L X106"W X95"H)
Distance between columns:
750mm (29.5")
Y-axis travel - headstock:
450mm (17.7")
Table feed - rapid advance:
6m/min. (240 IPM)
Table feed - milling speeds:
0.1 - 6m/min. (.004 - 240 IPM)
Headstock feed - rapid advance:
6m/min. (240 IPM)
Quill feed - motorized advance:
0.01-0.39mm/rev. (0.00039-0.0153"/rev.)
X-axis travel - table movement:
650mm (25.6")
Headstock feed - milling speeds:
0.1 - 6m/min. (.004 - 240 IPM)
Z-axis travel - stroke of quill:
160mm (6.25")
Spindle speeds -(low-high) stepless:
20-1250 and 1250-4000 RPM
Distance between spindle nose & table:
10-670mm (4-26.25")
W-axis travel - headstock cross travel:
500mm (19.5")

Description

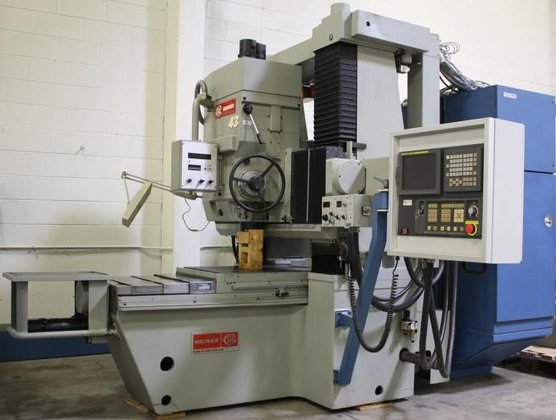

Serial No. 0207 New - 1999
Spindle Hours: 2045

Fanuc Control retrofit (2005) by, Swisstronic Precision.
SPECIFICATIONS:
EQUIPPED WITH:
GE Fanuc Series 21i-M Controller and Fanuc Drives (Swisstronic Retrofit, 2005)
Isolated Mounted Control Station w/ Directional Control Screen
Depth Display Z-Axis (Quill Movement)
Spindle Speed Gear Selector with Variable Speed Control
Spindle Speed Monitoring
Spindle Direction Reversable
Joystick Control in Jog Mode for X,Y,Z-Axis
(4) Selectable Increments for Quill Movement:0.001/0.010/0.100/1.000mm
Automatic Clamping Pin
Automatic Tool Shutdown
*Preliminary Specifications Subject to Verification.
