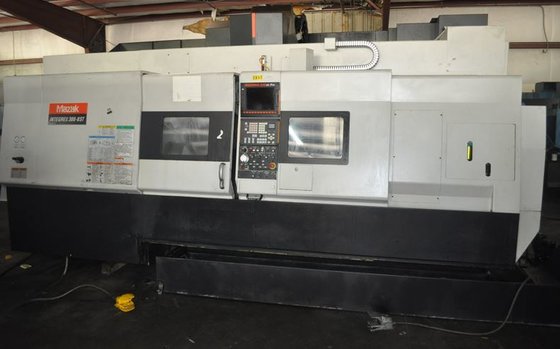

Location:
Lincolnshire, IL
Manufacturer:
Mazak lathes
Spindle Bore:
3.46"
Spindle Nose:
A2-8

Specifications

Condition:
used
Year:
2004
Stock number:
37310
B-axis:
10 RPM
C-axis:
400 RPM
Height:
110.2"
Weight:
30,000 Lbs.
X-axis:
24.8"
Y-axis:
1023 IPM
Z-axis:
62.4"
X/x2 axis:
1496 IPM
Z/z2 axis:
1496 IPM
Floor space:
201"(L-R) x 92"(F-B)
Spindle bore:
3.46"
Spindle nose:
A2-8
Spindle speed:
4,000 RPM
X2 axis lower:
9.06"
Z2 axis lower:
60.2"
Spindle torque:
368.8 Ft-Lbs.
Type of turret:
Drum
Swing - maximum:
33.5"
Magazine capacity:
40 Tools (KM)
Tool shank height:
1" x 1" x 5"L
Approximate weight:
29,983 Lbs.
Bar work - maximum:
3.0" Diameter
Floor space required:
201"L x 91.8"W x 110.2"H
Tool selction method:
Random
Tool selection method:
Bi-Directional
Tool to tool atc time:
1.3 Seconds
Tool weight - maximum:
22 Lbs.
Total number of tools:
9
Second headstock w-axis:
1181 IPM
Cutting length - maximum:
60"
Tool index time (1 step):
0.14 Seconds
Rotary tool spindle speed:
12,000 RPM
Rotary tool torque (20% ed):
88.5 Ft-Lbs.
Spindle index (programmable):
0.0001 Deg. (C-Axis Optional)
Swing using y-axis - maximum:
26" - 33.5"
Swing over cross slide - maximum:
33.5"
Swing over lower turret - maximum:
16.5
Tool length from gage-line - maximum:
15.75"
Distance between chuck faces - maximum:
60"
Rotary tool spindle horsepower (20% ed):
24.8 HP (AC)
Tool size (boring bar maximum diameter):
1.25"
Lower chucking cutting diameter - maximum:
16.5"
Spindle horsepower (continous/30 minutes):
30/35 HP (AC)
Upper chucking cutting diameter - maximum:
30"
Tool diameter w/all pockets full - maximum:
3.54"
Tool diameter w/adjacent pockets empty - maximum:
4.92"

Description

Serial No. 171975 New - 2004
Cutting Hours - Approximately 5,000
SPECIFICATIONS:
Note: Without boring bar holder on turret.
Main Spindle (L):
Second Spindle (R):
Upper Turret and Tooling:
Lower Turret and Tooling:
Axis Travels:
Axis Rapid Rates:
Dimensions:
EQUIPPED WITH:
Mazatrol Fusion 640MT Pro CNC
Performance CNC Optional Package
RS-232C/3.5" Floppy Drive
PCMCIA I/F (2-Slot, Card BUS)
Network Interface (LAN & Modem)
Coolant Thru Milling Head
213 PSI Thru/Flood Coolant (Upper Turret)
1 KG Flood Coolant (Lower Turret) 14.2 PSI
C-Axis 0.0001 Degree Incr. (1st & 2nd Spindle)
40 KM Tool Magazine
B-Axis 0.0001 Degree Incr. N/A Contouring
B-Axis Index 5 Degree (Coupling Clamp)
Lower 9 Position Drum Turret
Chip Conveyor (Side, Consep) 1500U (60")
Automatic Tool Eye
Auto Chuck Jaws Open/Close (1st & 2nd Spindle)
Chuck Open/Close Confirm (1st & 2nd Spindle)
Chuck Air Blast (1st Spindle)
Mazak Supplied I/F for Ovation EZ Comp. Sys.
(40) Tool Holders
*Preliminary Specifications Subject to...
