Location:
Lincolnshire, IL

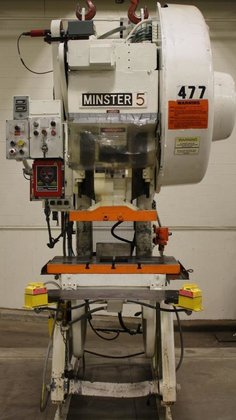

Manufacturer:
Minster
Capacity:
45 Ton
Weight:
11,000 Lbs.

Specifications

Condition:
used
Year:
1984
Serial number:
5SS24466
Stock number:
35259
Speed:
90 SPM
Stroke:
4"
Bed size:
28" L-R x 18" F-B
Capacity:
45 Ton
Throat depth:
8.5"
Bolster plate:
2-1/2" Thick
Slide adjustment:
2.5"
Approximate weight:
11,000 Lbs.
Bolster plate size:
36" L-R X 18" F-B
Opening through back:
13.5"
Distance bed to floor:
36" or 42.5"(w/Risers)
Flanged slide face area:
24" L-R x 14" F-B
Actual overall dimensions:
80" L-R x 62" F-B x 121" H
Shut height bed to slide (sdau):
12.25"

Description

Serial No. 5SS-24466 New - 1984
SPECIFICATIONS:
EQUIPPED WITH:
Wintriss Monitor Item: 9612501 and Resolver
SPM Digital Readout and Crank Angle Display
Air Clutch and Brake with Selector Controls
Arranged for Knockout L-R
Crankshaft Extension Right-Side
Automatic Recirculating Lubrication System
7.5 HP AC Main Drive Motor
Electrical Controls Arranged for 480/3/60
Dual Push Button Operation
*Preliminary Specifications Subject to Verification.
