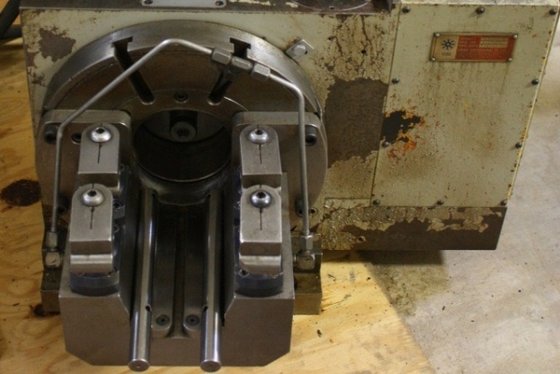

Location:
Lincolnshire, IL
Manufacturer:
Mitsubishi
Capacity:
330 Lbs. / 150 Kg
Weight:
500 Lbs. / 228 Kg

Specifications

Condition:
used
Year:
1996
Stock number:
30648
Gear ratio:
1 : 180
Motor type:
Mitsubishi HA80NT-E30
Clamp method:
Hydraulic
Center height:
8.26" / 210 mm
Repeatability:
+/- 2 Sec.
Rotation speed:
11.1 RPM
Table position:
Vertical / Horizontal
Diameter of table:
12.50" / 320 mm
Approximate weight:
500 Lbs. / 228 Kg
Increment - minimum:
0.001 Degree
Width of guide block:
0.70" / 18 mm
Pneumatic clamp torque:
71 (Kg/m)
Machine force - maximum:
78 Kg.m
Diameter of spindle hole:
80O MT4
Load capacity vertical - maximum:
330 Lbs. / 150 Kg
Center height in vertical position:
8.26" / 210 mm
Load capacity horizontal - maximum:
771 Lbs. / 350 Kg
Table height in horizontal position:
9.44" / 240 mm
Over all height in vertical position:
15.55" / 395 mm
Subcategory:
Tables, rotary

Description

Serial No. 963250 New - 1996
SPECIFICATIONS:
EQUIPPED WITH:
Mitsubishi Model MDS-A-SVJ-10 Servo Drive Unit (Compatible with Mitsubishi
M50/500 & M60/600 Series Control Unit)
OTC Hytec Air/Hydraulic PUMP for Clamping System
*Preliminary Specifications Subject to Verifications.
