Location:
Lincolnshire, IL
Manufacturer:
N/A
Weight:
80 Lbs., 36 kg

Specifications

Condition:
used
Year:
2008
Stock number:
36603
Weight:
80 Lbs., 36 kg
Electrics:
115/230 V / 50/60 Hz
Dimensions:
18"L-R x 24"F-B x 31"H
Weight range:
1.1 - 26.4 Lbs., 0.5 - 12 kg
Spindle holder:
50 Taper for Adapter
Balancing speed:
500 - 2500 rpm
Balancing planes:
2
Imbalance display:
mm/s, um or gmm
Power consumption:
Approx. 140 W
Max rotor diameter:
10.6", 270 mm
Laser positioning aid:
+/- 1 Degree
Imbalance reduction ratio:
95%

Description

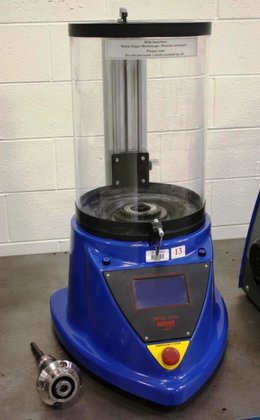

The Rego-Fix Model BMT 200 Toolholder Balancing Machine is ideal for balancing
a collet holder. Balancing is made possible by material subtraction, material
addition, fixed position, or using balancing rings.
This lightweight tabletop machine is compact with full functionality that can
be used immediately on any stable bench. No special foundation is necessary.
Single and dual plane holders can be balanced, and spindle adaptors can be
added to accept steep taper and HSK holders.
The touch screen display is user friendly and is available in several
languages. All balancing methods come pre-installed with up to 395 individual
toolholders and their specifications can be stored into memory. There is no
need for any external computers to be used in the balancing process.
Balanceable certificates can be printed for each toolholder (printer
required).
Serial No. 3.802.08.0401 New - 2008
SPECIFICATIONS:
EQUIPPED WITH:
Digital Touch Control
Laser Pointer for Automatic Positioning
Pneumatic...
