Location:
Lincolnshire, IL, USA
Manufacturer:
N/A
Capacity:
40 Lbs.
Weight:
10,000 Lbs.

Specifications

Condition:
used
Year:
1994
Serial number:
CDR2524SP3434
Stock number:
36339
Electrics:
480V / 3 Phase / 60Hz
R.i. tank:
7.5kW (60-250 Degrees F)
Wash tank:
7.5kW (60-250 Degrees F)
Dryer zone:
59" Long
Rinse tank:
7.5kW (60-250 Degrees F)
Solution type:
Aqueous Solutions
Basket capacity:
40 Lbs.
Coalescing tank:
(2) 3kW (60-250 Degrees F)
Infrared heater:
21" X 24" Type V Panel
Dryer - infrared:
10kW (to 1500 Degrees Face Temp.)
Agitating stations:
Wash, Rinse & R.I.
Approximate weight:
10,000 Lbs.
Parts carrier type:
Basket: 11.25" X 11.25" X 2.75"
Indexing cylinder travel:
41.5" (2.5" Cylinder Bore)
Agitation travel - stroke:
21.75" (3.25" Cylinder Bore)
Coalescing tank pump motor:
1 HP (3450 RPM)
Dryer conveyor drive motor:
1/4 HP (1725 RPM)
Ultrasonic generator types:
CX (Freq. Range 18.97-19.58kHz)
Ultrasonic generator units:
(4) 2000 Watts
Ultrasonic treatment tanks:
Wash & R.I.
In-feed conveyor drive motor:
1/4 HP (1725 RPM)
Roll-in live roller conveyor:
60" X 11.75" (10 FPM)
Current opening configuration:
12"L X 6.5"H
Dryer pressure blow-off motor:
2 HP (1725 RPM)
Tank size - wash, rinse & r.i:
(3) 24"L X 23"W X 21"D
Oil separator - coalescing type:
50 Gallons
Opening configuration - maximum:
18.5"L X 6.5"H
Total number of stations - heated:
(4) Wash, Rinse, R.I. & Dry
Wash tank reciprocating pump motor:
1 HP (3450 RPM)
Approximate dimension - floor space:
403"L X 94"W X 85"H
Floor to top of conveyor - load height:
38"
Station to station centerline distance:
24" (R.I. to Dry)
Filtration - bypass & recirculation pump:
(4) 2 X 50u & 2 X 20u (20" Long)

Description

Serial No. CDR-2524-SP-3434 New - 1994
GENERAL DESCRIPTION:

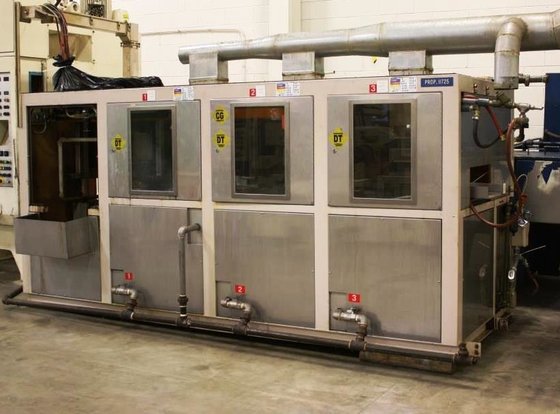

This system is a (3) three tank Ultrasonic Cleaning Machine with a powered
infeed conveyor, auto basket indexer, lift mechanisms coupled with an
infrared conveveyorized dryer. A coalescing oil separator and a recirculating
filtration system is furnished for the wash stage.
The auto indexing mechanism and the three basket elevators are furnished
with their own pneumatic cylinders, valves and circuitry for individual
control of speed, timing and monitoring. This individuality enhances the
overall versatility of this system.
Once the cycle has "Timed Out", the indexer will move a basket from each
station to the next and off the rust inhibit elevator to the dryer. As the
basket enters the dryer it will pass under a high pressure air blow off. The
continual running conveyor will allow the basket to pass under an Infrared
Heater.
SPECIFICATIONS:
Heaters:
Motors:
EQUIPPED WITH:
System: Manual / Automatic Mode
