Location:
Lincolnshire, IL
Manufacturer:
Aronson
Capacity:
2,000 Lbs.
Weight:
1,000 Lbs.

Specifications

Condition:
used
Year:
1995
Stock number:
32043
Power:
110 V
- in tilt:
20,300 Lbs.
Table size:
18" Diameter
Spindle diameter:
3"
Approximate weight:
1,000 Lbs.
Power forward tilt:
135 Deg. in 22 Seconds
Flat table height - maximum:
45"
Approximate overall dimensions:
45" x 30" x 40"
Variable table rotation speeds:
2.0 - .07 RPM
Capacity at 6" center of gravity:
2,000 Lbs.
Load type - maximum - in rotation:
8,000 Lbs.

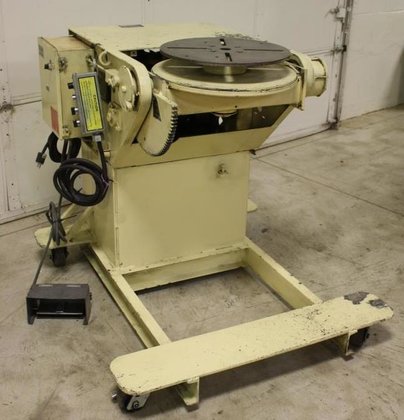

Description

Serial No. 951412 New - 1995
Motor Driven with 1/2 HP, 3 Phase, 60 Cycle. D.C., SCR Electronic Rotation
Motor. 1/2 HP 3, 60 Cycle AC, Tilt Motor, Dynamic Braking.
SPECIFICATIONS:
EQUIPPED WITH:
Power Rotation and Tilt. Vari-Speed Drive. Wormgear Drive. Adjustable Base.
Operators Pendant and Forward/Reverse Foot Pedal Control. Adjustable Tilt
Limit Switch.
*Preliminary Specifications Subject to Verification.
