Location:
Naples, FL
Price:
$118,000 USD

Specifications

Condition:
used
Year:
2008
Stock number:
17662
Type:
POWER PIPE
Width:
79.4"
Height:
114.5"
Length:
118"
Thrust:
24,800 lb
Weight:
Lined: 90 lb
Max flow:
50 gpm
Pullback:
30,000 lb
Fuel type:
Diesel
Max speed:
@ 2000 rpm: 156 hp
Fluid tank:
42 gal
Entry angle:
10° to 16°
Displacement:
275 in3
Max pressure:
1500 psi
Pipe diameter:
2.38"
Joint diameter:
3"
Make and model:
Cummins QSB4.5
Min bend radius:
175'
Rated engine rpm:
2300 rpm
Max spindle speed:
225 rpm
Min bore diameter:
4.5"
Ground drive speed:
Forward: 2.4 mph
Max carriage speed:
(thrust): 120 fpm
Max spindle torque:
4000 ft/lb
Number of cylinders:
4
Hydraulic tank capacity:
27 gal
Weight of pipe and large box:
(48 pipe): 5390 lb (2445 kg)
Weight of pipe and small box:
(25 pipe): 2972 lb
Manufacturer's gross hp rating:
148 hp
Subcategory:
Hdd drills

Description

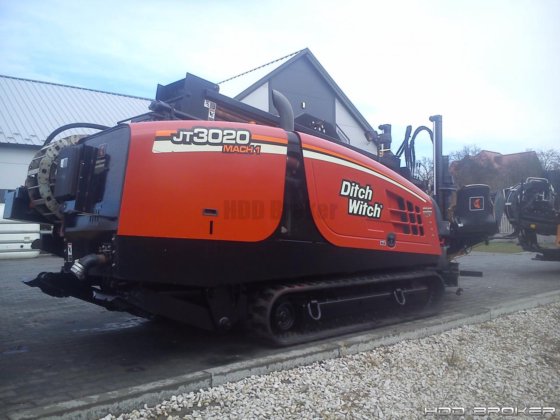

General Description: 2008 Ditch Witch JT3020 Mach 1 Directional Drill.
Pipe: (56) Pieces of Drill Pipe.
Accessories: CE Certificate.
Additional Information: NOT INCLUDED - The following items are available at an additional cost: -Drill Head -Mud Mixing System This equipment is located in Europe. If you are an overseas client and you would like to see if this equipment would be cost effective to have shipped to your country, please contact our office and we will provide you a free shipping quote.
