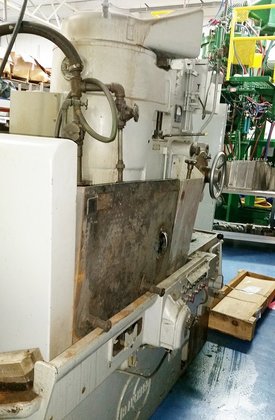

36" Blanchard Model 18D Vertical Spindle Rotary Surface Grinder in Elk Grove Village, IL, USA

Location:
Elk Grove Village, IL, USA
Price:
No price
Model:
18 36" Vertical Spindle Rotary Surface Grinder

Specifications

Condition:
used
Chuck speeds:
(6) 6, 9, 12, 18, 25, 33 RPM
Equipped with:
36" Electro-Magnetic Chuck w/ Controls, Wet Base, Auto Cycling Controls, Percentage-of-Load Meter
Chuck diameter:
36"
Main motor drive:
30 HP 3/60
Grinding wheel speed:
720 RPM
Maximum vertical height:
18"
Grinding wheel size (solid):
18" x 5" x 15"
Maximum swing inside guards:
40"
Chuck life remaining (approx.):
1/2"
Automatic downfeed of grinding head:
:.004" - .080" / Rev.

Description

36" Diameter Chuck, Wet Base, Under Power
