Location:
Contamine-sur-Arve, France
Manufacturer:

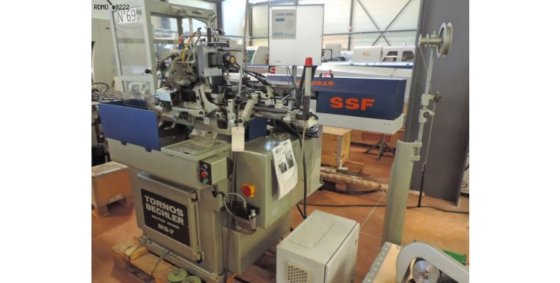

Tornos lathes
Model:
MS-7

Specifications

Condition:
used
Stock number:
P1333
Weight:
700 [kg]
Dimensions:
1440 x 900 [mm]
Headstock stroke:
60 [mm]
Max. bar diameter:
10 [mm]
Three-phase supply:
220 [V]
Number of turning tools:
5
Subcategory:
Turning
Subcategory 2:
Single-spindle lathe

Description

Details :
The machine was entirely remade including the paint in 2014.It was put in service in July 2014.

TECHNICAL DETAILS
max. bar diameter : 10 [mm]
number of turning tools : 5
headstock stroke : 60 [mm]
three-phase supply : 220 [V]
dimensions : 1440 x 900 [mm]
weight : 700 [kg]

EQUIPMENT
Control VNSA WinVario for simple and controlled headstock stops
Simple headstock 6-AD n°54928 with electronically directed motor (variostop).
Bar feeding tube with push-bars and complete sheaving foot
Drilling-tapping device with 3 spindle 13-Y n°5690
Milling device 26-FA mounted on drilling-tapping device 13Y for milling 6 faces
Polygon attachment Piranha 46 (new)
Transporter TORNOS 34-DA n°00541 (collet body of 8) cable tightening
Counter-driller 1 spindle 12-AD n°027039 with motor
Double splitting device TORNOS 14-CA (new) with motor
Automatic central greasing
Numerous accessories, collets and sleeves (same as on photos)
