Location:
Lincolnshire, IL
Manufacturer:
WMW Heckert
Weight:
7,000 Lbs.

Specifications

Condition:
used
Year:
1982
Stock number:
35959
Electrics:
3 Ph / 60 Hz / 220/440V
Table size:
15-3/4" x 63"
Spindle motor:
16 HP
Actual dimensions:
69"(L-R) x 72"(F-B) x 68"(H)
Approximate weight:
7,000 Lbs.
Spindle speeds (18):
28 - 1400 RPM
Table travel - cross:
14"
Number of table feeds:
18
Taper of spindle nose:
50
Spindle center to table:
1" - 15"
Table rotation - manual:
+45 to -45 Degrees
Vertical travel of knee:
14"
Spindle center to overarm:
6"
Table travel - longitudinal:
39"
Power rapid traverse - longitudinal:
0.63 - 31.5 IPM
Subcategory:

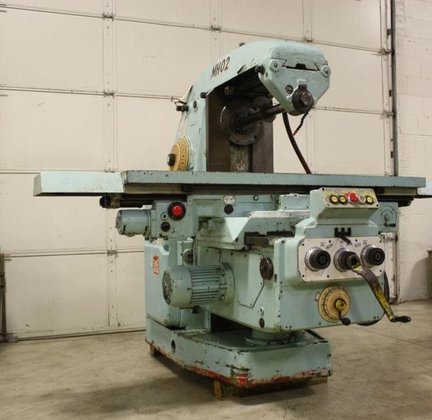

Millers, universal

Description

Serial No. 313651120
SPECIFICATIONS:
(Currently set up for 440)
EQUIPPED WITH:
Horizontal Overarm & Arbor Support
Rapid Traverse & Power Feed Motion
Independent Feed Motor
Electro-magnetic Brake (permits immediate stop of spindle)
Turret Stops
Push Button Forced Lubrication System
Spindle Forward & Reverse Switch
In Base Coolant Pump
*Preliminary specifications subject to verification
