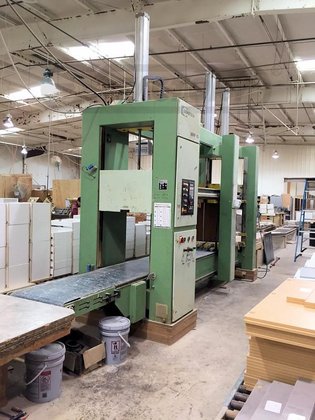

1996 LIGMATECH MPP 10/06 CASE

1996 LIGMATECH MPP 10/06 CASE CLAMP (AUTO FEED THRU) [CC-010870] in United States

Location:
United States
Price:
$21,900 USD
Manufacturer:
Ligmatech
Model:
MPP 10/06

Specifications

Condition:
used
Year:
1996
Recnum:
CC-010870
Comments:
A truly well built German Made Feed Through Case Clamp!
Machtype:
CASE CLAMP (AUTO FEED THRU)
Condition info:
(3-6) Good Condition [6]
Current status:
Active
Elect./voltage:
240 V, 60 Cy, 3 Ph.
Appr. repl. cost:
98000

Description

LIGMATECH MPP10/06 Electro-pneumatic "AUTOMATIC" Self-adjusting Feed Through Clamp:The MPP-10 is able to clamp cases of varied sizes without stopping for vertical and horizontal set-up.

-- General Description: Case height and length are detected by an electronic photocells as the case approaches the clamping section for automatic and simultaneous positioning of the vertical pressure platen and horizontal pressure support.Once the case has reached the clamping section, an electronic photocell signals the control to stop the conveyor and begin the clamping cycle.Upon completion of the clamping cycle, the conveyor advances the case out of the clamping area.

-- Working Capacity: Assembly/infeed area length 1,250 mm (49.3"), clamp length 5,600 mm (216"), clamp height 3,700 mm (144"); pass height from the floor 500 mm (19.7").Working Length min. 300 mm (11.8") - max. 2,500 mm (98"); working height min. 300 mm (11.8") - max. 1,220 mm (48"); working depth/width min. 250 mm (10") - max. 610 mm (24').

-- Positioning Speed: Feed speed from 8 - 37 MPM (26 - 121 FPM); normal output is approx 1.5 cycles per minute.

-- Horizontal Pressure System: Automatic self-positioning pressure platen driven by three (3) pneumatic cylinders.

--Vertical Pressure System: (1) Automatic self-positioning vertical support with three (3) automatic adjustable pneumatic pressure pads between the supports(1) Fixed vertical support with three (3) automatic adjustable pneumatic pressure pads between the support.

-- PLC Control System: Allows for simultaneous vertical and horizontal clamping; applying specific vertical and horizontal pressure; maintaining specific pressure time.

-- Complete with:Light barriers on front & back of the machine for operator safety. Actual model is LIGMATECH MPP10/06
