Top Seller

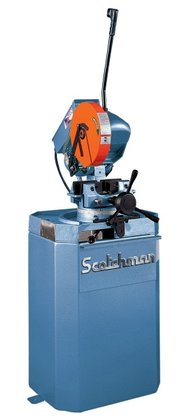

10.75" Blade Dia Scotchman CPO
Location:
Harrison, NJ
Price:
$5,395 USD
Manufacturer:
Scotchman saws
Model:
CPO 275 Manual *Made in the USA*
Weight:
550 lbs. (279 kg)

Specifications

Condition:
new
Stock number:
136606
Depth:
43-1/2"
Width:
21-7/8"
Model 2:
CPO 275
Age info:
NEW
Arbor bore:
1-1/4" (32 mm)
Pin spacing:
2/8/45
@ 45 degrees:
2" (51 mm)
@ 90 degrees:
3-3/8" (86 mm)
@ 45 degrees 2:
2" x 2" (51 x 51 mm)
@ 45 degrees 3:
3" x 2" (76 x 51 mm)
@ 45 degrees 4:
1" (25 mm)
@ 45 degrees 5:
1" x 1" (25 x 25 mm)
@ 90 degrees 2:
3" x 3" (76 x 76 mm)
@ 90 degrees 3:
3" x 2-3/8" (76 x 60 mm)
@ 90 degrees 4:
1-1/2" (38 mm)
@ 90 degrees 5:
1-1/2" x 1-1/2" (38 x 38 mm)
Shipping weight:
550 lbs. (279 kg)
From floor to vise:
36-1/8"
Not incl. feed handle:
53-1/4"
Maximum blade diameter:
10-3/4" (275 mm)
Factory wired (specify):
208/230/460/575v 3-ph 60 Hz (LT & HT models)
Subcategory:
New cold saws

Description

NEW SCOTCHMAN MANUAL COLD SAW
MODEL: CPO 275
*MADE IN THE USA*
STANDARD EQUIPMENT & FEATURES:
Manual clamp for material vise
Operator controlled trigger switch
Double self-centering vise assures burr-free cuts
Miter capabilities 45 degrees left to 45 degrees right
Miter locking device: quick, accurate setting-stops at 45 degrees left, 90 degrees, and 45 degrees right
Capable of slotting
Two cutting speeds
Hardened and ground worm and wheel gear box
Worm wheel of top quality bronze
Chip drawer
Seven-gallon coolant tank with pump
One 10" diameter (250 mm) HSS blade
One blade wrench
One gallon concentrated coolant
230 or 460 volt/3-ph electrics (must specify voltage)
3 year warranty on parts
MAXIMUM CAPACITIES:
WITH A 275 MM/10-3/4" BLADE
TUBING
Round
@ 90 degrees: 3-3/8" (86 mm)
@ 45 degrees: 2" (51 mm)
Square
@ 90 degrees: 3" x 3" (76 x 76 mm)
@ 45 degrees: 2" x 2" (51 x 51 mm)
Rectangle
@ 90 degrees: 3" x 2-3/8" (76 x 60 mm)
@ 45 degrees: 3" x 2" (76 x 51 mm)
SOLID
Round
@ 90 degrees: 1-1/2" (38 mm)
@ 45 degrees: 1" (25 mm)
Square
@ 90 degrees: 1-1/2" x 1-1/2" (38 x 38 mm)
@ 45 degrees: 1" x 1" (25 x 25 mm)
SPECIFICATIONS:
CUTTING SPEEDS (must specify when ordering)
LT
(low turn) designed for solid mild steel, solid stainless steel, & thick wall pipe
30/60 rpm, 2 hp
HT
(high turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
60/120 rpm, 1.5 hp
SS
(single speed) designed for 220 1-ph applications [note: additional cost for this model]
60 rpm, 2 hp
Factory wired (specify) ................... 208/230/460/575v 3-ph 60 Hz (LT & HT models)
................... 220v 1-ph 60 Hz (SS model only)
Maximum blade diameter .................... 10-3/4" (275 mm)
Arbor bore ................................ 1-1/4" (32 mm)
Pin spacing ............................... 2/8/45
Width ..................................... 21-7/8"
Depth ..................................... 43-1/2"
Height
Not incl. feed handle .................... 53-1/4"
From floor to vise ....................... 36-1/8"
Shipping weight ........................... 550 lbs. (279 kg)
OPTIONS (CALL FOR PRICING):
Blades
Square tube jaws
Special clamping fixture
Blade guide laser light
60" or 120" material stop roller conveyor mounted with an advanced measuring quick-loc system
(available left to right or right to left material feed)
10' and 20' material supply track
96" or 144" SG programmable stop system
(supplied w/roller conveyor & designed for either right to left or left to right stop position)
