1983 6" Width 18" Length
Location:
Harrison, NJ, USA
Manufacturer:
Boyar-Schultz
Model:
2A618 "CHIPPER GRINDER"
Weight:
1,425 LBS (APPROX.)

Specifications

Condition:
used
Year:
1983
Serial number:
CH-3415-2A
Stock number:
153050
Weight:
1,425 LBS (APPROX.)
- cross:
0.001"
Floor space:
56" L-R X 38" F-B X 62" HIGH
Cross feed of table:
6- 13/16"
Table working surface:
18" X 5-5/8"
Work height under wheel:
0" TO 12"
Longitudinal table speed:
MANUAL OR 0 TO 9"IPM WITH BYPASS FOR 0 TO 50' FPM
Longitudinal table travel:
19- 7/8"
Spindle speed (direct drive):
3450 RPM
Standard grinding wheel size:
8" X 5/8" X 1-1/4" HOLE
Handwheel graduations - vertical:
.................... 0.0005"

Description

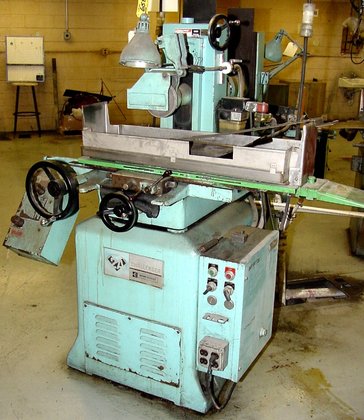

6" X 18" BOYAR SCHULTZ HYDRAULIC SURFACE GRINDER
MODEL: 2A "CHIPPER GRINDER" S/N: CH3415-2A NEW: 1983
SPECIFICATIONS:
LONGITUDINAL TABLE TRAVEL ........................... 19- 7/8"
CROSS FEED OF TABLE ................................. 6- 13/16"
LONGITUDINAL TABLE SPEED ............. MANUAL OR 0 TO 9"IPM WITH BYPASS FOR 0 TO 50' FPM
STANDARD GRINDING WHEEL SIZE ........................ 8" X 5/8" X 1-1/4" HOLE
WORK HEIGHT UNDER WHEEL.............................. 0" TO 12"
TABLE WORKING SURFACE................................ 18" X 5-5/8"
SPINDLE SPEED (DIRECT DRIVE)......................... 3450 RPM
HANDWHEEL GRADUATIONS - VERTICAL:.................... 0.0005"
- CROSS......................... 0.001"
FLOOR SPACE ......................................... 56" L-R X 38" F-B X 62" HIGH
WEIGHT ............................................... 1,425 LBS (APPROX.)
EQUIPMENT:
O.S. WALKER PERM. MAG. CHUCK, 6" X 12"
HEAVY DUTY CAST IRON BASE
SET UP FOR COOLANT
SPINDLE MOTOR AND CONTROLS - 1 HP 3/60/208-230/460 VOLT
"CHIPPER GRINDER":
ROUGH & FINISH GRIND ON THE SAME MACHINE WITH ONE SET-UP. A LOW SPEED (345 RPM)
MOTOR AND A HIGH-SPEED (3,450 RPM) MOTOR ARE PROVIDED. FINE, SLOW (O TO 9"IPM)
TABLE SPEED IS CONTROLLED WITH A TEMPERATURE & PRESSURE COMPENSATING HYDRAULIC SYSTEM.
*** INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE ***
*** EXCELLENT CONDITION & APPEARANCE **
