Top Seller
1985 6" Width 12" Length
Location:
Harrison, NJ
Model:
612 VALUMASTER
Weight:
1,225 LBS.

Specifications

Condition:
used
Year:
1985
Serial number:
523-612-3700
Stock number:
152199
Maximum:
16"
Cross travel:
7"
Width & length ground:
6" X 12"
Approx. machine weight:
1,225 LBS.
Std. grinding wheel size:
8" X 1/2"
To top of table, minimum:
3-1/4"
Longitudinal table travel:
14"
Approx. machine dimensions:
36" X 36" X 70"
Height of work ground w/7" wheel:
12"

Description

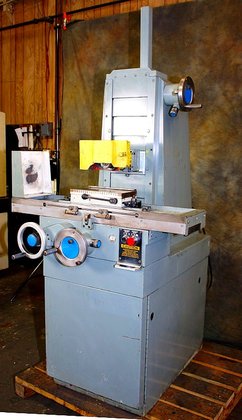

6" X 12" BROWN & SHARPE "SUPER-PRECISION"
(MADE IN USA) HAND FEED SURFACE GRINDER
MODEL: 612 VALUEMASTER S/N: 523-612-3700 NEW: 1985
WIDTH & LENGTH GROUND ........................ 6" X 12"
HEIGHT OF WORK GROUND W/7" WHEEL .................. 12"
DISTANCE, CENTER OF WHEEL SPINDLE:
TO TOP OF TABLE, MINIMUM ..................... 3-1/4"
MAXIMUM ........................ 16"
LONGITUDINAL TABLE TRAVEL ......................... 14"
CROSS TRAVEL ....................................... 7"
CROSS HANDWHEEL GRADUATED TO READ TO ........ 0.0002"
CROSS, FINE FEED KNOB GRADUATED TO READ TO .. 0.0001"
VERTICAL ADJUSTMENT OF WHEEL SPINDLE .......... 12-1/2"
VERTICAL HANDWHEEL GRADUATED TO READ TO ..... 0.0002"
VERTICAL, FINE FEED KNOB GRADUATED TO READ TO 0.0001"
STD. GRINDING WHEEL SIZE .................... 8" X 1/2"
APPROX. MACHINE WEIGHT ..................... 1,225 LBS.
APPROX. MACHINE DIMENSIONS ............ 36" X 36" X 70"
EQUIPPED WITH:
ROLLER BEARING TABLE
FINE FEED KNOBS FOR CROSS& VERTICAL FEEDS (.0001")
6" X 12" O.S. WALKER FINE-DIVISION PERMANENT MAGNETIC
CHUCK
BIJUR LUBRICATOR
2 H.P. 3/60/230-460 VOLT BROWN& SHARPE
"SUPER-PRECISION" "ORIFLEX" SPINDLE DRIVE
MACHINE IS PRESENTLY FOR WIRED 3/60/208 VOLTS
* INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE *
** EXCELLENT CONDITION& APPEARANCE **
