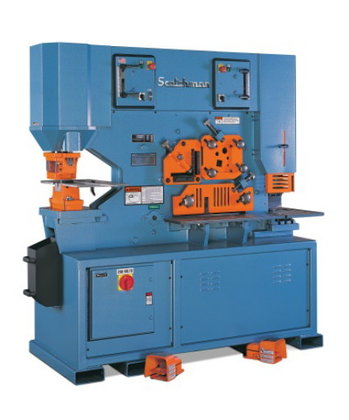

85 Ton 14" Throat Scotchman
Location:
Harrison, NJ
Price:
$33,190 USD
Manufacturer:
Scotchman
Model:
DO 8514-20M *Made in the USA*
Capacity:
85 ton (77 mt)
Weight:
5,504 lbs. (2,496 kg)

Specifications

Condition:
new
Stock number:
153849
Model 2:
DO 8514-20M
Age info:
NEW
Brake 12:
85 ton (77 mt)
Brake 24:
85 ton (77 mt)
Optional:
10 hp 1 ph (7.46 kW) 230v
Standard:
10 hp 3 ph (7.46 kW) 230/460/208/380/575v
Rod shear:
1/2", 3/4", 1", 1-1/2" round and 1-1/2" square
90 degrees:
6" x 6" x 1/2" (150 x 150 x 13 mm)
Dimensions:
70" L x 30" W x 77" H
Hydraulics:
3,350/3,800 psi (231/262 bar)
Picket tool:
1/2", 3/4", 1" (13 mm, 19 mm, 25 mm)
Schedule 40:
1-1/4" (32 mm)
Strut shear:
samples required
Pipe notcher:
3/4", 1" (19 mm, 25 mm)
Throat depth:
14" (350 mm)
Channel shear:
2" to 6" (50 mm to 150 mm)
Flat bar shear:
20" length (500 mm)
Open end brake:
5" x 5/8" (125 x 16 mm)
Shipping weight:
5,504 lbs. (2,496 kg)
Special tooling:
4" max. dia. (200 mm max. dia.)
Round rod (max.):
1/2", 3/4", 1", 1-1/2" (13 mm, 19 mm, 25 mm, 38 mm)
In heavy material:
20 spm (3/4" stroke) [punch station]
In light material:
48 spm (1/4" stroke) [punch station]
Offset die holder:
Max. 40 ton (36 mt)
Punching capacity:
85 ton (77 mt)
Rectangle notcher:
2" x 4" x 1/2" (50 x 100 x 13 mm)
Square rod (max.):
1-1/2" (38 mm)
Square tube shear:
1/2" to 2", 12 gauge (12 mm to 50 mm, 2.75 mm)
One round punch & die:
max. diameter 1-1/4"
45 degrees (w/bar shear):
4" x 4" x 1/2" (100 x 100 x 13 mm)
Built-in rectangle notcher:
2" x 4" x 1/2" can be converted to 3" x 3" V-notcher,
Throat depth w/punch attachment:
4-7/16"
90 degree v-notcher (punch station):
6" x 6" x 5/16" (150 x 150 x 8 mm)
Subcategory:
New ironworkers
Subcategory 2:
Fabricating machine

Description

NEW SCOTCHMAN 85 TON IRONWORKER
MODEL: DO 8514-20M
*MADE IN THE USA*
STANDARD FEATURES:
Dual operator allows for two operators to work at the same time at full capacity
85-ton punch station (1-1/16" in 1")
Keyed punch ram for safety
14" throat depth
Punch gauging table with fence and scale
Die holder complete with 2" die insert
Punch nut with wrench & stripper
Adjustable swing-away stripper
One round punch & die: max. diameter 1-1/4"
Punch jog control
Two adjustable electric stroke controls with scale
Two electric remote foot pedals
Two 2-stage hydraulic pumps
Two valves
6" x 6" x 1/2" slug-less angle shear
Built-in rectangle notcher: 2" x 4" x 1/2" can be converted to 3" x 3" V-notcher,
50-ton punch station, and 6" open end brake
20" flat bar shear
Shear table with miter fence
Rod shear: 1/2", 3/4", 1", 1-1/2" round and 1-1/2" square
Slug receptacles
Electrical box supplied with emergency palm button and lock-out tag-out accommodations
230/460 volt/3-ph electrics (must specify voltage)
All guards necessary to comply with ANSI B 11-5 standards
Forklift accommodations
3 year warranty on parts
CAPACITIES AND SPECIFICATIONS:
RATED ON A36 MILD STEEL/65,000 PSI TENSILE
Punching capacity .................................. 85 ton (77 mt)
.................................. 1-1/16" in 1" (27 mm in 25 mm)
Special tooling .................................... 4" max. dia. (200 mm max. dia.)
Throat depth ....................................... 14" (350 mm)
Flat bar shear ................................. 20" length (500 mm)
................................. 1" x 16" (25 x 400 mm)
................................. 3/4" x 20" (19 x 500 mm)
Angle shear
90 degrees ........................................ 6" x 6" x 1/2" (150 x 150 x 13 mm)
45 degrees (w/Bar shear) .......................... 4" x 4" x 1/2" (100 x 100 x 13 mm)
Brake 12" .......................................... 85 ton (77 mt)
Brake 24" .......................................... 85 ton (77 mt)
Open end brake ..................................... 5" x 5/8" (125 x 16 mm)
Pipe notcher ....................................... 3/4", 1" (19 mm, 25 mm)
Schedule 40 ....................................... 1-1/4" (32 mm)
....................................... 1-1/2", 2" (38 mm, 50 mm)
90 degree V-notcher (punch station) ................ 6" x 6" x 5/16" (150 x 150 x 8 mm)
Rectangle notcher .................................. 2" x 4" x 1/2" (50 x 100 x 13 mm)
90 degree V-notcher (notcher station) ............. 3" x 3" x 1/2" (75 x 75 x 12 mm)
Punch attachment for notcher station .............. 50 ton, 1-1/4" in 1/2" (32 mm in 12 mm)
Throat depth w/punch attachment ................... 4-7/16"
Channel shear ...................................... 2" to 6" (50 mm to 150 mm)
Strut shear ........................................ samples required
Rod shear
Round rod (max.) .................................. 1/2", 3/4", 1", 1-1/2" (13 mm, 19 mm, 25 mm, 38 mm)
Square rod (max.) ................................. 1-1/2" (38
