- Stock number:
- 5-1/2 HP, 220 Volt, 3 Phase
- 6600 lbs
- One machine in stock
- Approx. dim:
- 94.5" L x 46.8" W x 76.7" H
- Throat depth:
- 12.20 in.
- Overall length:
- 82 in.
- Variable stroke:
- 5.51 in.
- Between housing length:
- 63 in.
- Presses in United States
- Metal fabricating
- Subcategory 2:
- Brakes, press, hydraulic

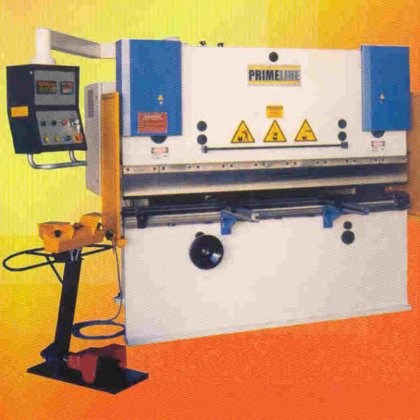

New Primeline Hydraulic Press Brake
Model 45 x 6 PP
Tonnage : 45
Overall Length : 82 in.
Between Housing Length: 63 in.
Variable Stroke : 5.51 in.
Speed of Ram (in/s)
Approach : 3.94
Bend : .47
Return : 2.76
Throat Depth : 12.20 in.
Motor : 5-1/2 HP, 220 Volt, 3 Phase
Approx. Dim. : 94.5" L x 46.8" W x 76.7" H
Weight : 6600 lbs
200 Step programmable control for:
X(back gauge front-to-back for flange dimension), and
Y(ram depth for bend angle using ram position)
One gooseneck forming punch and one multiple-opening lower die.
Two Front Support Arms
Lower Die Holder for American Style Tools
Front to back wedge arrangement in bed for die compensation
Sheet metal Safety Guards at back and sides of machine
The machine features:
Fully hydraulic design and operation, utilizing two hydraulic cylinders
Torsion bar for ram parallelism
Cylinder pistons ground, hard-chrome plated and ground a second time for
precision and maximum life
Infinitely adjustable mechanical depth stops are built into the cylinders
and are push-button operated with electronic digital readout
Upper beam set up to hold American Style forming punches with standard
Fine Adjustment of stroke
Adjustable working pressure and pressure regulating gauge
Two speed ram advance (hi/low)
High Volume pump
Controls in swiveling console on the machine and a movable pedestal with
two-hand control, foot control, and emergency stop control
Delivery: One machine in stock
