Flagler Duct Flange 1 TDC
Location:
Ronkonkoma, NY, USA
Price:
No price
Manufacturer:
Flagler

Specifications

Condition:
new
Stock number:
1803
Subcategory:
Rollformers

Description

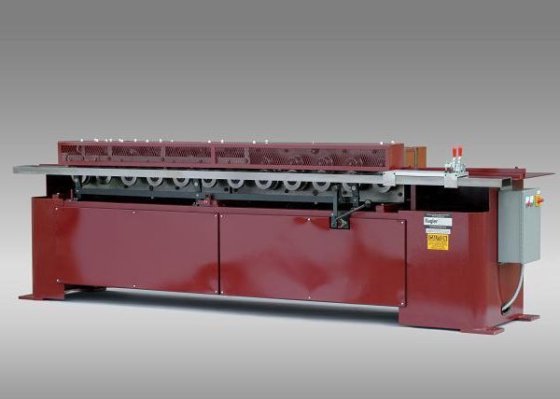

New Flagler Duct Flange 1 TDC Machine - 12 Station
Duct Flange Rolls
Extended Shafts for Auxiliary Tooling
Capacity : 18 - 26 Ga.
Speed : 60 FPM
Features:
1-1/2" Dia.(At Bearing) Hardened and Ground Spindles
Hardened Feed Gauge
Quick Height Adjstment for Short Parts Feeder
Lubrication Points at all Bearings
Additonal Options Are Available
Electrics: 7-1/2 HP, 230 Volt, 3 Phase
Shipping Weight: 3,500 lbs
Shipping Dimensions: 135" Long x 32" Wide x 40" High
Price: $$Call
FOB: Michigan
