Top Seller

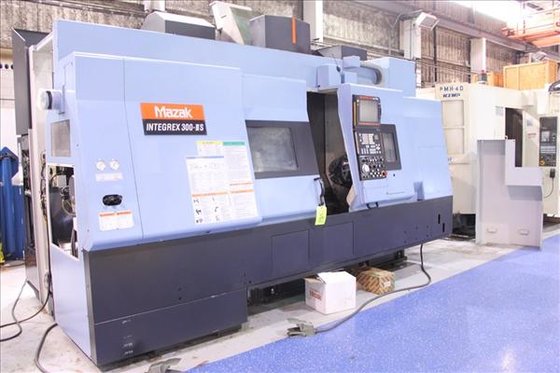

2004 MAZAK INTEGREX 300 III
Location:
United States
Manufacturer:
Mazak lathes
Model:
INTEGREX 300 III S 5-AXIS CNC LATHE
Spindle Bore:
87.88mm
Spindle Nose:
A2-8

Specifications

Condition:
used
Year:
2004
Terms:
F.O.B.
B-axis:
10 RPM
C-axis:
400 RPM
Weight:
11791 Kg
Dimensions:
4318mm x 2388mm x 2972mm
Spindle bore:
87.88mm
Spindle nose:
A2-8
Maximum swing:
850.90mm
Spindle speed:
4000 RPM
X-axis travel:
629.92mm
Y-axis travel:
+/- 115.06mm
Z-axis travel:
1076.96mm
Spindle torque:
442.5 ft/lb
Main spindle (l):
yes
Maximum bar work:
76.20mm Dia
Spindle torque 2:
368.8 ft/lb
Magazine capacity:
40 Tools
Tool shank height:
25.40mm
Tool to tool time:
1.3 Sec
X-axis rapid rate:
633.31 mm/sec
Y-axis rapid rate:
433.07 mm/sec
Z-axis rapid rate:
633.31 mm/sec
Second spindle (r):
yes
Maximum tool weight:
9.98 kg
Maximum cutting length:
1016.00mm
Second headstock w-axis:
1022.10mm
Rotary tool spindle speed:
12000 RPM
Maximum swing using y-axis:
660.40mm - 850.90mm
Rotary tool torque (20%ed):
88.5 ft/lb
Maximum bar work (non-thru):
76.20mm Dia
Spindle index (programmable):
.0001°
Maximum swing over cross slide:
850.90mm
Spindle index (programmable) 2:
.0001° (C-Axis Optional)
Second headstock w-axis rapid rate:
499.96 mm/sec
Maximum cutting diameter (chucking):
762.00mm
Spindle horsepower (cont. / 30 min):
22.37 kw / 26.10 kw
Tool size (boring bar max diameter):
38.10mm
Maximum distance between chuck faces:
1016.00mm
Maximum tool length (from gage-line):
400.05mm
Rotary tool spindle horsepower (20%ed):
18.49 kw
Maximum tool diameter w/ all pockets full:
89.92mm
Maximum tool diameter w/ adjacent pockets empty:
124.97mm

Description

Mazatrol Fusion 640MT Pro CNC Control
(2) 254.00mm Hydraulic Chucks for Main and Sub
Part Probe (Prep)
RS-232 C / 88.90mm Floppy Disc Drive
PCMCIA I/F (2-Slot, Card Bus)
Network Interface (For LAN & MODEM)
Coolant Thru Milling Head
14.97 kgs./ Thru/Flood Coolant
C-Axis .0001° Degree Incr. (1st Spindle)
C-Axis .0001° Degree Incr. (2nd Spindle)
40 Tool
B-Axis .0001° Degree Incr. N/A Contouring
Side Chip Conveyor
Automatic Tool Eye
Auto Chuck Jaws Open / Close (1&2 Spindle)
Chuck Open / Close Confirm (1&2 Spindle)
Chuck Air Blast (1st Spindle)
(40) Tool Holders
