Top Seller
14" Blade Dia Scotchman CPO
Location:
Harrison, NJ
Price:
$9,395 USD
Manufacturer:
Scotchman saws
Model:
CPO 350 PKPD Semi-Auto *Made in the USA*
Weight:
760 lbs. (344 kg)

Specifications

Condition:
new
Stock number:
136624
Depth:
43-1/2"
Width:
21-7/8"
Model 2:
CPO 350 PKPD
Age info:
NEW
Arbor bore:
1-9/16" (40 mm)
Pin spacing:
4/12/64
@ 45 degrees:
4" (102 mm)
@ 90 degrees:
4-1/2" (114 mm)
@ 45 degrees 2:
4" x 4" (102 x 102 mm)
@ 45 degrees 4:
1-3/4" (44 mm)
@ 45 degrees 5:
1-3/4" x 1-3/4" (44 x 44 mm)
@ 90 degrees 2:
4-1/4" x 4-1/4" (108 x 108 mm)
@ 90 degrees 3:
5-1/2" x 4" (140 x 120 mm)
@ 90 degrees 4:
2" (51 mm)
@ 90 degrees 5:
2" x 2" (51 x 51 mm)
Shipping weight:
760 lbs. (344 kg)
From floor to vise:
37-7/16"
Not incl. feed handle:
56-1/4"
Maximum blade diameter:
14" (350 mm)
Factory wired (specify):
208/230/460/575v 3-ph 60 Hz (LT, HT, & VS models)
Subcategory:
New cold saws

Description

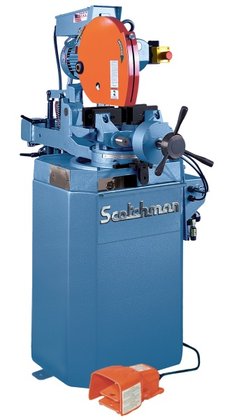

NEW SCOTCHMAN SEMI-AUTO COLD SAW
MODEL: CPO 350 PKPD
*MADE IN THE USA*
STANDARD EQUIPMENT & FEATURES:
Air-operated clamp for material vise
Pneumatic power down feed with electric controls
Emergency stop button
Double self-centering vise assures burr-free cuts
Miter capabilities 45 degrees left to 45 degrees right
Miter locking device: quick, accurate setting-stops at 45 degrees left, 90 degrees, and 45 degrees right
Capable of slotting
Two cutting speeds
Double reduction, hardened and ground worm and wheel gear box
Worm wheel of top quality bronze
Chip drawer
Seven-gallon coolant tank with pump
One 12-1/2" diameter (315 mm) HSS blade
One blade wrench
One gallon concentrated coolant
230 or 460 volt/3-ph electrics (must specify voltage)
3 year warranty on parts
MAXIMUM CAPACITIES:
WITH A 350 MM/13-7/8" BLADE
TUBING
Round
@ 90 degrees: 4-1/2" (114 mm)
@ 45 degrees: 4" (102 mm)
Square
@ 90 degrees: 4-1/4" x 4-1/4" (108 x 108 mm)
@ 45 degrees: 4" x 4" (102 x 102 mm)
Rectangle
@ 90 degrees: 5-1/2" x 4" (140 x 120 mm)
@ 45 degrees: 4" x 4" (102 x 102 mm)
SOLID
Round
@ 90 degrees: 2" (51 mm)
@ 45 degrees: 1-3/4" (44 mm)
Square
@ 90 degrees: 2" x 2" (51 x 51 mm)
@ 45 degrees: 1-3/4" x 1-3/4" (44 x 44 mm)
SPECIFICATIONS:
CUTTING SPEEDS (must specify when ordering)
LT
(low turn) designed for solid mild steel, solid stainless steel, & thick wall pipe
22/44 rpm, 3 hp
HT
(high turn) designed for thin wall tube .060 wall thickness or thinner and non-ferrous material
44/88 rpm, 2.5 hp
SS
(single speed) designed for 220 1-ph applications
44 rpm, 3 hp
VS
(variable speed) wired 230/460v 3-ph or 220v 1-ph [note: additional cost for this model]
11-117 rpm, 5 hp
Factory wired (specify) ................... 208/230/460/575v 3-ph 60 Hz (LT, HT, & VS models)
................... 220v 1-ph 60 Hz (SS & VS models only)
Maximum blade diameter .................... 14" (350 mm)
Arbor bore ................................ 1-9/16" (40 mm)
Pin spacing ............................... 4/12/64
Width ..................................... 21-7/8"
Depth ..................................... 43-1/2"
Height
Not incl. feed handle .................... 56-1/4"
From floor to vise ....................... 37-7/16"
Shipping weight ........................... 760 lbs. (344 kg)
OPTIONS (CALL FOR PRICING):
Blades
Variable speed control
(recommended for cutting multiple shapes, sizes and thicknesses)
Square tube jaws
Special clamping fixture
Blade guide laser light
60" or 120" material stop roller conveyor mounted with an advanced measuring quick-loc system
(available left to right or right to left material feed)
10' and 20' material supply track
96" or 144" SG programmable stop system
(supplied w/roller conveyor & designed for either right to left or left to right stop position)
*We will meet or beat virtually any price on the web. We also offer special financing deals with integrated discounts for qualified customers.
