- Kaliningrad, Russia
- No price
- Grunwald trailers

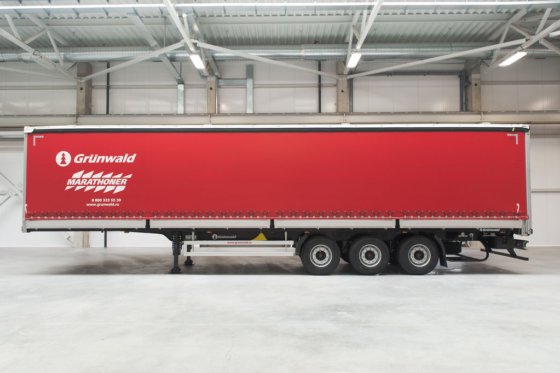

- Curtain side semitrailer
- Net weight:
- 7200 kg
- Axles; brand:
- Gross weight:
- 38100 kg
- Axles; brakes:
- Body; chassis:
- Load capacity:
- 30900 kg
- Axles; tyre size:
- 385/65 R22.5
- Axles; suspension:
- Vehicle condition:
- Trailers in Russia
- Subcategory 2:
- Tilt semi-trailer
Volume, m3: 92
The height of the SSA, mm: 1 150
Max Weight, kg: 38 000
Own weight kg: 6900
Carrying capacity: 31,100
Axial load unit, kg: 27 000
Fifth wheel load, kg: 11000
Overall dimensions: length 13 827 width 2 550 height 4000
Dimensions of cargo platform, mm: length 13620 width 2480, height 2700
Suspension: 3 axis load capacity of 9000 kg each to choose from:
- SAF (Netherlands) IntraDisc Custom Design with a beam of circular cross section. Suspension arms integral type. Airbag 300 mm in diameter with a steel cup. Reinforced shock absorbers for heavy traffic conditions.
- BPW (Germany) Heavy Duty with a beam of square section. The hub mechanism Eco Plus III. Airbag 360 mm. Spring lever 100 mm wide and 51 mm thick.
Brake type to choose: disc or drum
Wheels and tires: Steel wheels imported, imported tires KAMA, the dimension 385/65 R22,5.
• Lifting axle
• Outer frame has brackets for securing cargo.
• Mechanical two-speed support device BPW.
• Aluminium side walls 600 mm high.
• 4 locking rear castle gate.
• Floor made of waterproof plywood 30 mm thick.
• Sealing cord.
• 2 locking shoe holder.
• Basket for two spare wheels, a holder for a spare wheel.
• Tool box with lock.
• Hook for the displacement of the roof and an awning.
• Pull-out stairs to the cargo area.
The options are:
▪ The height of SSA from 1350 to 1650 mm
▪ The front / rear lift axle
▪ Axles BPW Heavy Duty 3x12 tons axes or SAF Intradrum Custom Design.
▪ Information block Smartboard
