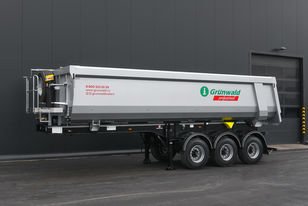

GRUNWALD Tipper semitrailer 27-31-34 m3
Location:
Kaliningrad, Russia
Price:
$25,526 USD
Manufacturer:
Grunwald trailers
Model:
Tipper semitrailer 27-31-34 m3

Specifications

Condition:
used
Year:
2015
Ebs:
yes
Tilt:
yes
Axles:
3
Colour:
deep blue
Volume:
31 m³
Net weight:
8400 kg
Year of mfg:
new
Gross weight:
38000 kg
Hardox steel:
yes
Body; chassis:
steel
Load capacity:
29600 kg
Axles; suspension:
air/air
Brake accumulator:
yes
Vehicle condition:
new
Overall dimensions:
9517 m × 2500 m × 3150 m
Subcategory:
Semi-trailers
Subcategory 2:
Tipper semi-trailer

Description

Geometric volume, m3: 27
Fifth wheel height, mm: 1310
Curb weight, kg 38 000
Curb weight, kg 8000
Carrying capacity: 30 000
Axial load unit, kg 27 000
Fifth wheel load, kg 11 000
Suspension: BPW HEAVY DUTY (Germany) specially reinforced for Russian design axes, springs, shock absorbers and air bellows
Suspension: Pneumatic-spring
Brake Type: Drum
Wheels and tires: Steel wheels imported, tires KAMA / Kormoran / Michelin
Hydraulics: Hyva
Equipment:
▪ Aluminium working platform in front of the semi-trailer.
▪ The pitch sideways tilt.
▪ 2 locking shoe holder.
▪ Bracket for two spare wheels.
▪ Manometer
The options are:
▪ The height of SSA from 1350 to 1650 mm
▪ The front / rear lift axle
▪ Axles BPW Heavy Duty 3x12 tons axes or SAF Intradrum Custom Design.
▪ Career Michelin tires
▪ Information block Smartboard
▪ Polymer Okuslide tab for quick unloading
Benefits:
▪ The project was developed in collaboration with the design office of the German company Langendorf;
▪ Use only high quality European components;
▪ Reinforced steel frame, axle assembly in the strong performance;
▪ frame spars of Swedish steel OVAKO. When assembling spars boil on both sides.
▪ Shelves spars of solid-rolled strip without welds;
▪ Welding work is performed in an argon environment, which makes weld resistant to low
temperatures;
▪ The body is welded from three parts overlap;
▪ Paint for severe climatic conditions;
▪ Documented control in each production stage;
