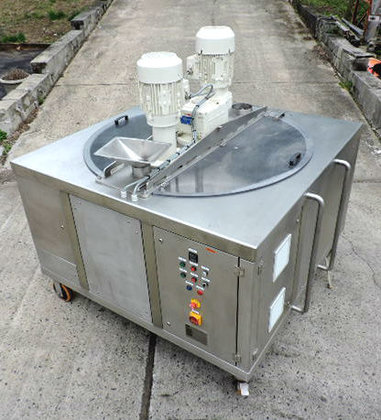

Features all stainless steel food grade construction, heated vessel with jacketed recirculation system, 60" diameter vessel with 24" straight side and dish bottom to 4. 5" center bottom outlet tapering to jacketed 2" pipe terminating at end of vessel housing, central bridge with full bottom and side wall sweep agitator by veenstra (holland) , 7. 5 horsepower motor with gear reducer and veenstra type frr-630s intensive mixer set off center with 6. 3 kw drive @ maximum speed of 1155 rpm, two see through acrylic half covers with safety interlocks to prevent open cover operation, 6. 75" and 2. 75" loading ports through bridge with safety grates one 4" port with safety grate and small hopper, factory controls for temperature, mixer speeds, individual mixer stop/starts, emergency stop, reset, general failure indicator light and main disconnect, entire vessel is insulated and housed in 72" x 72" cabinet with service panels on all sides, wired for 460 volt/3 phase service. Mounted on casters with push handles. System may be unused as there is no indication electrical connections have been made previously to our testing.
