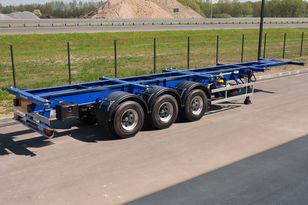

GRUNWALD Versatile heavy duty container
Location:
Kaliningrad, Russia
Price:
No price
Manufacturer:
Grunwald trailers
Model:
Versatile heavy duty container semitrailer

Specifications

Condition:
used
Year:
2015
Axles:
3
Net weight:
5650 kg
Gross weight:
43650 kg
Axles; brakes:
drum
Body; chassis:
steel
Load capacity:
38000 kg
Axles; tyre size:
385/65 R22.5
Axles; suspension:
air/air
Vehicle condition:
new
Overall dimensions:
12400 m × 2500 m × 1370 m
Subcategory:
Semi-trailers

Description

.The height of the SSA, mm: 1100
Curb weight, kg: 51000
Own weight kg: 6250
Carrying capacity: 44,750
Axial load unit, kg: 36000
Fifth wheel load, kg: 15 000
Overall dimensions: length 12 355 width 2500
Loading height, mm: 1370
Suspension: axle BPW Heavy Duty 3x12 tons (Germany) specially reinforced for Russian design axes, springs, shock absorbers and air bellows
Suspension: Pneumatic-spring
Brake Type: Drum
Wheels and tires: double busbar, galvanized steel wheels imported, the Kormoran tire dimension 315/80 R22,5.
Hydraulic: Hyva/Benotto
Benefits:
▪ The project was developed in conjunction with specialists from the leading German design office;
▪ Use only high quality European components;
▪ frame spars of Swedish steel OVAKO. When assembling spars boil on both sides and keep
elasticity at low temperatures;
