Location:
Elk Grove Village, IL, USA
Price:
No price
Model:

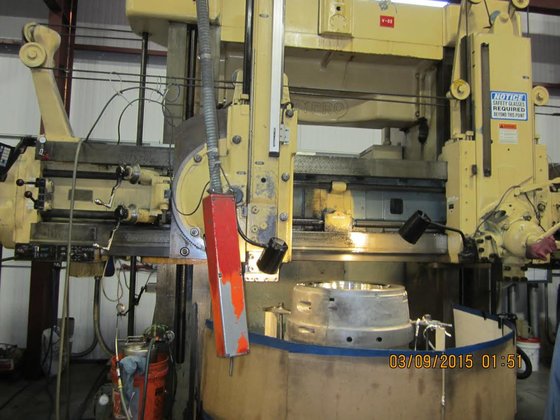

64 VBM Adjustable Rail (2) Head Vertical Boring Mill

Specifications

Condition:
used
Year:
1953
Feeds:
.003" - .500" /rev
Model number:
64 VBM
Table speeds:
3-86 RPM
Equipped with:
Swiveling Ram Head on Cross Rail w/ Tool holder, Indexable Turret Head on Cross Rail with 5 position tool holder, 62" 4 Jaw Independent Table, Power Rapid Traverse, Digital Readouts, Pendant Control Floor-mount No pit required
Maximum swing:
65"
Table diameter:
62"
Main drive motor:
50 HP
Cross rail travel:
52"
Turret head ram travel:
30"
Maximum height under rail:
60"
Vertical travel of ram head:
36"
Current electrical arrangement:
480/3/60

Description

4 Jaw Independent Chuck, Turret Head, Ram Head, 50 HP Drive, Floor Mount
