Top Seller
1965 GEHRING 1 Z 250-131
Location:
Metzingen, Germany
Manufacturer:
GEHRING
Model:
1 Z 250-131

Specifications

Condition:
used
Year:
1965
Power (kw):
180° rotary table, lots of accessories
Taper (iso/mt):
250
Drilling-Ø (mm):
80
Subcategory:
Honing machines

Description

G E H R I N G (Germany)

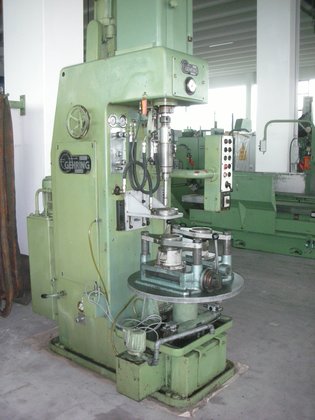

Vertical Precision Honing Machine
Model 1 Z 250 - 131
Year 1965 but reconditioned several times since then
_______________________________________________________
Honing Ø 10 - 100 mm
Max. honing depth, approx. 250 mm
Max. spindle stroke 260 mm
Distance between spindle and column 300 mm
Mounting height 1,000 mm
Table size 350 x 500 mm
Height of table above floor 500 mm
Spindle speeds in 2 steps, infinitely variable, approx. 85 – 300 rpm
170 – 600 rpm
Stroke speed, infinitely variable, hydraulic 0 - 23 m/min
Spindle drive 2 kW
Total electrical load 6 kW – 380 V – 50 Hz
Weight 2,600 kg
Accessories / Special Features
* Built-on 2-station tilting table which accommodates 2 workpieces. Mechanical workpiece clamping, using a manual lever.
* Hydraulic infeed of the tool.
* Switch-off via timer. * Air measuring device (probably).
* Honing oil unit. * Various splash shields, etc.
Condition : Good. Machine can be inspected under power.
Delivery : Ex stock, as inspected.
Payment : Net, after conclusion of contract.
