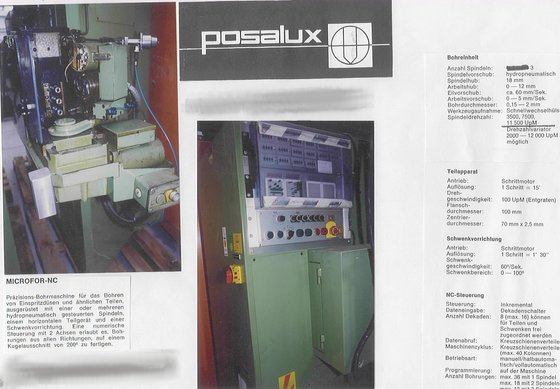

P O S A L U X (Switzerland)
Horizontal 3-Spindle Fine Boring Machines
Model MICROFOR 3 - NC 2
Year 1979 Serial Nos. 6.8230/9
Boring 0.15 – 2 mm
Spindle stroke 0 – 18 mm
Working stroke, max. 0 – 12 mm
Quick feed 60 mm/sec
Boring feed 0 – 5 mm/sec
Spindle speeds 3,500 - 11,500 rpm
Distance between spindles, vertical, approx. 80 mm
Table speeds (for deburring) approx. 100 rpm
Table , approx. 100 mm
Table bore, approx. 70 mm
Table slide swivelling device, approx. 60 °/sec
Swivelling range 0 – 100 °
Total drive, approx. 2.5 kW
Weight 1,000 kg
Accessories / Special Features
Serial No. 6.8230/9
Machine is equipped with a modern POSALUX SELECTRON Control
with keyboard and LED for direct programming on the machine (in
principle the same as with a punchboard control). With setting
microscope and machine lamp.
Serial No. 4.7809/9
Machine is equipped with POSALUX SELECTRON Control with
punchboard and decade switch for indexing and swivelling.
2 x MARPOSS Size Control.
The machines were used for making very accurate bores on cylindrical parts.
Condition : Good to very good.
Delivery : Ex stock, as inspected.
Payment : Net, after conclusion of contract.
