2001 KELLER ENA 10.0 V / 7,5 kW Nebelabscheider in Staufenberg, Germany

Location:
Staufenberg, Germany
Price:
No price
Manufacturer:
Keller
Model:
ENA 10.0 V / 7,5 kW Nebelabscheider

Specifications

Condition:
used
Year:
2001
Stock number:
109074
Category:
Machine Tools equipment in Germany
Subcategory:
Machinery
Subcategory 2:
Extraction

Description

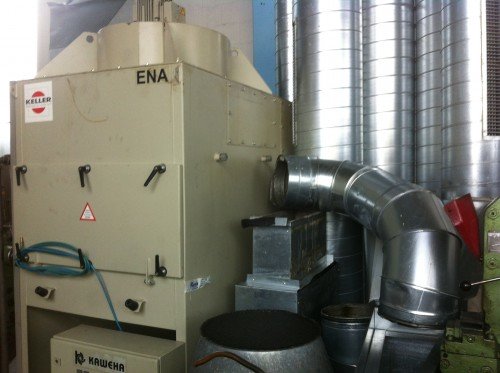

Emulsions mist separator Model KELLER Type ENA 10.0 V / 7,5 kW
Serial number: 33649 Year of manufacture 2001
Technical specifications:
Nominal air volume: 10000 m³ / h
Reed opening: 300 x 400 mm
Crude gas opening: 250 x 600 mm
Total pressure: 180 daPa
Filter elements Stage 1 in 2: 2 each
Size of filter elements: 490 x 1180 x 50/100 mm
Solenoid valve 1 ": 1
Dewatering section 2 ": 1
3/8 "watering nozzles: 4
Raw gas inlet: left / right / rear
Reingasagress: left / right
Flushing water consumption: 50 l / min.
Drive power: 7.5 kW
Speed: 2900 rpm.
Outside dimensions approx .: 1800 x 2350 x 2800 mm
Weight approx .: 720 kg
Suitable, for example, Eg for 5 milling machines
With
- Switch cabinet
- Outlet tube unit
- Intake manifold units for inside and outside with funnel for the roof
- Switch summer / winter operation
Used, in very good condition
Price on request.
Delivery: ex stock or location free loading truck.
Payment: upon purchase, net or by arrangement.
Technical data are not binding. Errors excepted.
