Location:
Metzingen, Germany
Manufacturer:
Hurth

Specifications

Condition:
used
Year:
1977
Axial feed (mm):
Shaving tool grinder, w/o. accessories

Description

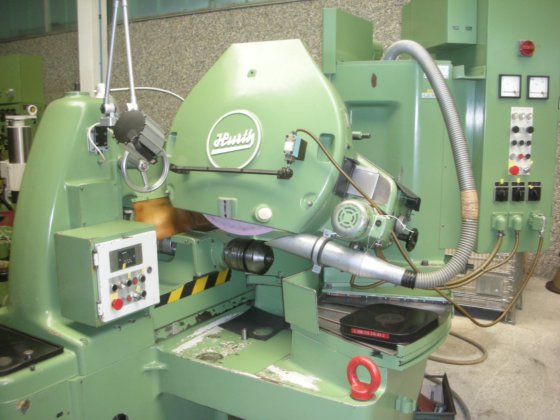

Universal Shaver Cutter Grinding Machine
Model SRS 400 Year 1977
_____________________________________________________________
Shaver cutter Ø, min./max. 64 - 320 mm
Module range 1 - 12
Shaver cutter width, max. 40 mm
No. of teeth 13 – 240
Pitch block Ø 73 – 320 mm
Speeds of workpiece slide 5 / 20 / 30 / 40 teeth per min.
Grinding slide speed 690 rpm
Grinding slide Ø 762 mm
Grinding wheel swivelling (pressure angle) 5 – 21 °
Grinding slide swivelling (helical angle) 2 x 35 °
Grinding slide adjustment, vertical 240 mm
Cutting speed 1 / 0.5 / 0.25 m/min
Spindle drive 1.1 kW
Total electrical load, approx. 3 kW - 500 V - 50 Hz
Weight, approx. 4,200 kg
Accessories / Special Features
* Machine is suitable for grinding internal and external shaver cutters. It is also suitable for master gears as well as cutters for gear shapers .
Unfortunately the machine does not have many accessories. It would therefore be a good investment as a second machine if you already have suitable accessories available.
Condition : Good to very good. Machine can be inspected under power
Delivery : Ex stock as inspected
Payment : Net, after conclusion of contract
