CMS PF-3126-4TRORCU CNC ROUTER (TWIN

CMS PF-3126-4TRORCU CNC ROUTER (TWIN TABLE & MULTI SPINDLE) [RC-011972] in Europe

Location:
Europe
Price:
$156,432 USD
Manufacturer:
CMS
Model:
PF-3126-4TRORCU

Specifications

Condition:
used
Recnum:
RC-011972
Comments:
A large 8' x 17' overall cap. Twin Table CMS with (4) Spdls and "new" OSAI Control!
Machtype:
CNC ROUTER (TWIN TABLE & MULTI SPINDLE)
Condition info:
(8-9) Reconditioned [8]
Current status:
Active
Elect./voltage:
400 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
450000

Description

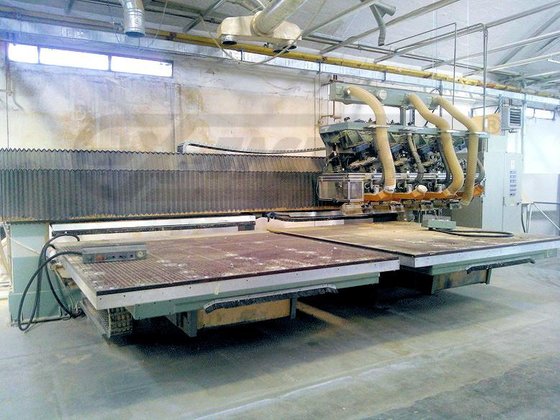

CMS PF-3126-4TRORCU 4-Axis CNC Router with (4) Router Spindles and Dual Tables;

-- 4-Axis CNC with Twin (2) 102.3" (2,600 mm) x 102.3" (2,600 mm) Moving tables.

-- "Lignostone" table surface with (2) vacuum zones; tables are machined with threaded bushings for use with clamps and fixtures, can be locked together to form a 102.3" (2,600 mm) x 205" (5,200 mm) single table.Specifications:

-- Extra Heavy Duty fixed gantry bridge, X-axis travel = 189" (4,800 mm) (head along bridge), Y-axis = 102.3" (2,600 mm) (tables front to back), Z-axis = 9.8" (250 mm) .

-- A-axis is +/- 45°,

-- Equipped with: (4) 10 kW (13 HP) liquid cooled electro spindle with RH/LH programmable rotation, spindle speed of 1,000 - 18,000 RPM, (4) on-board (12) station ISO type carousel tool changer all spindles powered by (2) 22 KVA static frequency converter;

-- Closed loop AC Servo drive system with precision ground ball screws for positioning, fast 2,125 IPM (54 MPM) positioning feed rate on X-axis; 1,771 IPM (45 MPM) on Y-axis, 393" IPM (10 MPM) all axes ride on extra large Star precision contour linear guideways.

-- NEW 2016 OSAI 10 Series control system, featuring: (8) Axes simultaneous control, ETHERNET connection, large hard drives, inch/metric operation, and feed rate & spindle speed override (monitor and controls).

-- Complete with: Automatic centralized lubrication system with forced grease injection, assortment ISO 30 tool holders with collets; vacuum pumps optional.
