- $5,900 (USD)
- OLIMPIC S 212
- A good starter machine at a very good price
- Condition info:
- (3-6) Good Condition
- Current status:
- 220 V, 60 Cy, 3 Ph.
- Appr. repl. cost:
- Machine Tools equipment in Canada

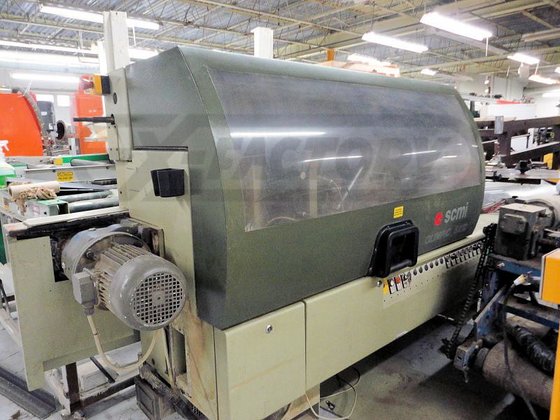

SCMI "S 212" Edgebander.Featuring: Edge thickness cap. 0.4 - 12 mm (1/2"), 3 mm PVC cap., min. working width 4-3/4"; panel thickness 10 mm min. and 55 mm (2") maximum.
-- Hot Melt glue application system with booster system for immediate heat-up, and reverse glue applicator roller; guillotine for 3 mm PVC.
-- Pneumatically controlled pressure section with (1) large drive and (3) idle rollers, all independently controlled.
-- SCMI S 212 Workstations: Double motor end trim (1.3 HP - 12,000 RPM motor ea.), pneumatic adjustment for 0Ã‚Â° - 15Ã‚Â° chamfer cutting; top & bottom flush trim (2.5 HP - 12,000 RPM motor ea.).
-- Top & bottom fine & radius trim unit (2.5 HP - 12,000 RPM motor ea.), Bevels from 0Ã‚Â° - 30Ã‚Â°, both top & bottoms have pneumatic plunge in/out feature controlled from controlled panel.
-- Top & bottom PVC scrapers for 3 mm radius, pneumatic pressure control for scraping knives, digital readouts.
-- Last Station: Top & bottom buffing (0.4 HP - 1,400 RPM ea. motor).
-- Single feed speed of 40 FPM, 5 HP feed drive, automatic chain track lubrication; Hold down pressure beam with double row of hold down rollers, opens from 3/8" - 2-5/16".
-- Complete with: Sound proof cabins w/windows & interior lights, Heavy Duty outrigger panel support w/counter pressure, 15 KVA frequency converter, and manuals.
