1999 BURKLE ODW 2332/60 FEED

1999 BURKLE ODW 2332/60 FEED THROUGH PRESS [PF-010385] in United States

Location:
United States
Price:
$145,000 USD
Manufacturer:
BURKLE
Model:
ODW 2332/60

Specifications

Condition:
used
Year:
1999
Recnum:
PF-010385
Comments:
7-1/2' x 10' BURKLE Press Layup Belt, Infeed Conveyor and Outfeed Conveyor!
Machtype:
FEED THROUGH PRESS
Condition info:
(6-8) Very good condition [6]
Current status:
Active
Elect./voltage:
460 V, 60 Cy, 3 Ph.
Appr. repl. cost:
500000

Description

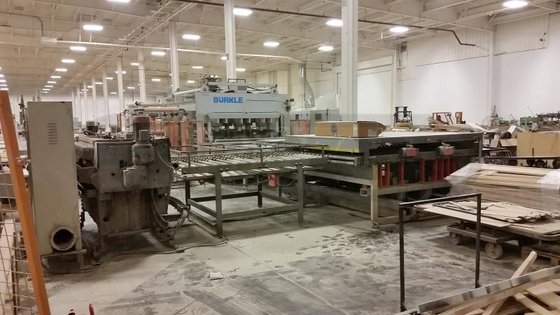

BURKLE ODW 2332/60 Feed Through Press Line:Platen dimensions of 2,300 (90.5") x 3,200 (126") drilled steel, maximum press surface 6,2 m² with loading on the 2,300 mm (90.5") side.

-- Infeed Conveyors: (1) 86-1/2" x 78" and (1) 86-1/2" x 228". Powered belt feeds into Press.

-- Single Daylight Press, 150 mm (5.9") opening, end loading on 86-1/2" side. Specific pressure on the maximum pressing area 60 N/cm2 (87 PSI); Total pressure 3,754 kN (385 metric Tons). Three (3) rows of hydraulic cylinders totaling (9), each 140 mm (5.5") in dia. and down stroke. Hydraulic operating pressure of 271 bar.

-- Press Platens are 100 mm (3.93") thick solid steel drilled for heating medium hot water Maximum pressing temperature 130° C (266° F). Total open/close time (18) Seconds.

-- Mylar Feed Through Belt carries your panel into/out of the Press at an approx. feed speed of 33 FPM (10 MPM).

-- Outfeed Conveyor with (15) belts, each 2" wide - overall conveyor size of 92" x 252".

-- Electric Connected Load of the press line approx. 18 kW, Electric connected load of the heating plant approx. 2 x 80 kW.

-- Required suction volume with a speed of the air of 30 m/sec. = 5 000 m3/h. Required air pressure minimum 6 bar (85 PSI).

-- Complete With: All controls & special wire mesh reenforced hoses for heating connection.

-- Weight of press is 28,000 kG (61,600 Lbs).
