2000 COSTA A CCT 1150
Location:
Spain
Price:
$20,533 USD
Manufacturer:
Costa
Model:
A CCT 1150
Elect./Voltage:
380 V, 50/60 Cy, 3 Ph.

Specifications

Condition:
used
Year:
2000
Recnum:
SX-012186
Comments:
Cleaned and Checked Sander ready to be shipped to your door!
Machtype:
VENEER SANDER (50" - 90", 2-HEAD)
Condition info:
(5-7) Cleaned and checked [6]
Current status:
Active
Elect./voltage:
380 V, 50/60 Cy, 3 Ph.
Appr. repl. cost:
115000

Description

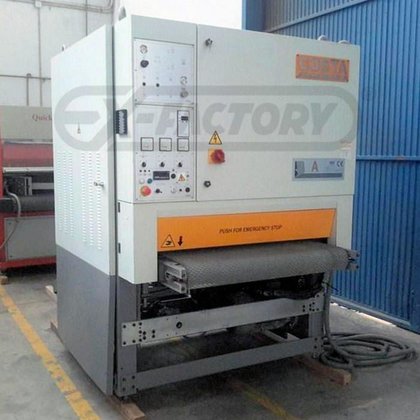

COSTA ACCT 1150 Veneer Sander:

-- 3-Head, 1,150 (45.3") width cap.; Sealer sander with (1) segmented finishing platen with variable abrasive belt speed and (2) abrasive belts with electronic tracking and pneumatic tensioning

--

-- 1st Head: Contact roller with 23 HP motor, Pneumatic grit set and One speed single rotation, 2nd Head: Contact roller with 23 HP motor, Pneumatic grit set and One speed single rotation.

-- 3st Head: segmented finishing platen, 9.7 kW (13 HP) motor; (40) section electronically controlled narrow segments conform to panel width and length for thin veneer or sealer sanding.Variable feed speed conveyor 5-25 MPM (16 - 82 FPM), floating bed assembly with (2) sections under each head, vacuum conveyor bed assembly with suction fan and motor assembly, 5.5 kW (7.5 HP) motor.

-- Infeed & outfeed spring loaded hold down rolls, powered raise & lower conveyor bed with LED readout.Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic� from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
