Top Seller
0.1644" Cap. 96" Width GMC
Location:
Harrison, NJ
Price:
$18,850 USD
Manufacturer:
GMC
Model:
HS-0808M *Taiwan Made*
Weight:
8,150 lbs.

Specifications

Condition:
new
Stock number:
145350
Model 2:
HS-0808M
Age info:
NEW
Back gauge:
24" manual
Dimensions:
132"L x 87"W x 63"H
Main motor:
10 hp, 220v, 3 ph
Mild steel:
8' x 8 ga.
Blade length:
8'3"
Oil tank cap:
25 gal.
Throat depth:
18"
Machine weight:
8,150 lbs.
Stainless steel:
8' x 11 ga.
Blade rake angle:
2 degrees
Worktable height:
34-1/2"
Front support arm:
24"
Strokes per minute:
10-17
Subcategory:
Shears
Subcategory 2:
New shears

Description

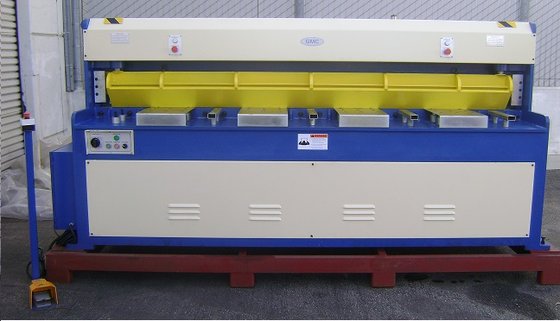

NEW "GMC" HEAVY DUTY HYDRAULIC SHEAR
w/24" MANUAL BACK GAUGE
MODEL: HS-0808M
Made in Taiwan
STANDARD FEATURES:
ISO 9001 certified
Automatic quick change blade gap adjustment (BGA), no lever required
CE standard "OMERO" electric control system
Meets OSHA safety standard code
Shadow line for accurate straight cutting
Adjustable cutting length and stroke
Ball transfer plates on worktable for easily loading workpiece
Well balanced and sturdy all steel machine frame
German made hydraulic logic system centrally located and quiet
Shear blades are high grade carbon/chrome alloy steel and hardened to 60 HRC,
2-edge indexable upper blade and 4-edge indexable bottom blade
Full length viewable safety finger guard to protect operator from cutting hazard
Removable safety foot pedal, automatic blade raise up on removal of foot from pedal
Hydraulic, electrical overload protection
Compact operator control panel
All motors are overload protected & low voltage control system
Jog or continuous auto cycle cutting operation modes
One year industrial warranty for parts
SPECIFICATIONS:
Cutting capacity
Mild steel .......................... 8' x 8 ga.
Stainless steel ..................... 8' x 11 ga.
Blade length ......................... 8'3"
Strokes per minute ................... 10-17
Throat depth ......................... 18"
Worktable height ..................... 34-1/2"
Front support arm .................... 24"
Back gauge ........................... 24" manual
Blade rake angle ..................... 2 degrees
Oil tank cap. ........................ 25 gal.
Main motor ........................... 10 hp, 220v, 3 ph
Machine weight ....................... 8,150 lbs.
Dimensions ........................... 132"L x 87"W x 63"H
STANDARD EQUIPMENT:
24" manual back gauge (one side wheel drive)
60" squaring arm with inlaid inch/metric dual scale
Material support and drop back chuter
(2) 24" front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
OPTIONAL EQUIPMENT (CALL FOR PRICING):
Safety fence for enclosure of the back side of the machine
