Location:
United States
Price:
No price
Manufacturer:
Doosan lathes
Model:

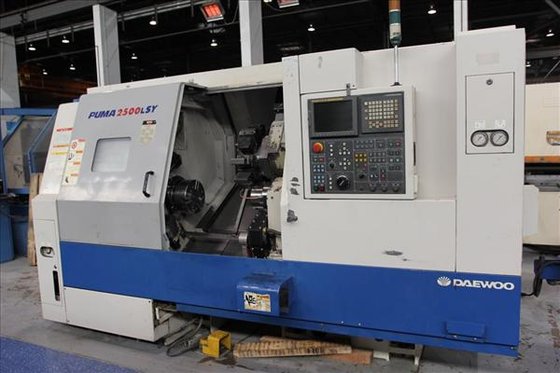

DOOSAN/DAEWOO PUMA 2500 LSY MULTI AXIS MILL & TURN CENTER/LATHE
Spindle Bore:
1.77"
Spindle Nose:
43.7"

Specifications

Condition:
used
Year:
2005
Stock number:
33742
Chuck size:
8"
Spindle hp:
10 HP
B-axis travel:
32.7"
Minimum angle:
.001°
Spindle motor:
30 HP
Spindle speed:
60 - 6000 RPM
X-axis travel:
9.84"
Y-axis travel:
4" (+/- 2")
Z-axis travel:
32.6"
Swing over bed:
23.6"
Tool holder type:
BMT 55
Rotating tool rpm:
50 - 5000 RPM
Spindle bore dia.:
1.77"
Turret index time:
.1 sec.
Angle of slant bed:
30°
Rapid traverse rate:
787 IPM
Swing over carriage:
21.6"
C-axis minimum angle:
.001°
Maximum bar capacity:
3"
Y-axis repeatability:
.00012"
Spindle bore diameter:
3.4"
Maximum spindle torque:
319 ft/lb
Sub-spindle guideway span:
9.8"
X-axis rapid traverse rate:
790 IPM
Y-axis rapid traverse rate:
295 IPM
Z-axis rapid traverse rate:
945 IPM
Rotating tool spindle motor:
7.5 HP
X and z-axis ball screw diameter:
1.3"
Boring bar diameter (sub spindle):
1"
Boring bar diameter (main spindle):
1.5"
Distance between main & subspindle nose:
43.7"
Maximum turning diameter (main spindle):
13"

Description

Equipped With
Fanuc 18i-TB CNC Control
Y-Axis
Sub-Spindle with Ball Screw Positioning and full C-Axis
Live Axis Tool Holders
12-Station Turret
Various Tool Holders
Way Lube Separation System
Coolant / Chip Conveyor System
Dimensions and Weight
180"x 91"x 100"
4572mm x 2311mm x 2540mm
27000
12245 Kg
