Location:
York, PA
Price:
$99,500 USD
Manufacturer:
UNION
Model:
BFP 130/6

Specifications

Condition:
used
Year:
1980
Stock number:
14148
Size:
5"

Description

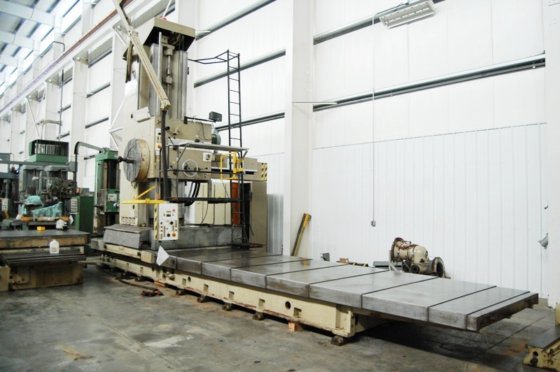

5" UNION FLOOR TYPE HORIZONTAL BORING MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $99,500.00
Stock # 14148
Serial # 11075
New 1980
Model # BFP 130/6
Column Longitudinal Travel: 18' 3", Rack & Pinion Driven
Head Vertical Travel: 98", Driven by Ball Screw & Fanuc Servo Motor
Column Cross Travel: 15.7", Driven by Ball Screw & Fanuc Servo Motor
Spindle Travel: 39"
(27) Spindle Speeds: 4.5 to 900 RPM
Spindle Taper: #50 with Power Draw Bolt
Facing Plate Diameter: 34"
(18) Facing Plate RPM: 4.5 to 180 RPM
Spindle Feeds: .03 to 48 MM Per Rev., & .0016 to 2.00 TPR
(36) Feeds to Head & Column: .024 to 78.7 IPM
EQUIPPED WITH:
Rapid Traverse
Universal Right Angle Milling Head with 24-1/2" Long Extension
Tailstock with 78" Power Vertical Travel & 39" Power Longitudinal Travel on the Base
3-Axs Acu Rite DRO: Head Vertical Travel, Column Cross Travel & Spindle Travel
Pendant Control
Sliding Metal Way Covers on the Bed
Wedge Type Leveling Pads
All Hard Ways
NO Floor Plates...
