Location:
York, PA
Price:
$29,500 USD
Model:
70A-DP4-T Fraser

Specifications

Condition:
used
Year:
1969
Stock number:
13168
Size:
4"

Description

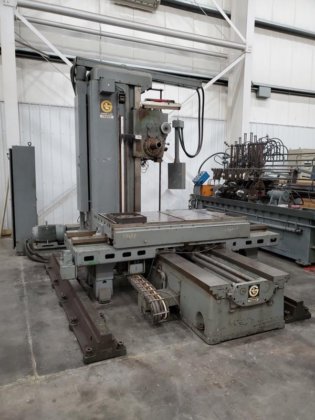

4" GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $29,500.00
Stock # 13168-P
Serial # 150-917
New 1969
Model # 70A-DP4-T Fraser
Table Size: 36" x 74" with (7) 13/16" Tee Slots
& (3) 3/4" Key Slots
Table Travel: Approx. 72"
Saddle Travel: Approx. 60"
Head Vertical Travel: 55"
Spindle Travel: 28"
Spindle Speeds: 10 to 1300 RPM
Spindle Taper: #50 with Power Draw Bolt
Spindle Feeds: .002 to .250 TPR
Milling Feeds: .040 to 120 IPM
Pendant Control
Hard Bed & Table Ways
Soft Vertical Ways
NOTE: Table Outrigger Floor Pieces MISSING
20 HP Main Motor, 3 Phase, 50 Cycle, 440 Volts
1-1/2 HP Hydraulic Pump Motor, 3 Phase, 50 Cycle, 440 Volts
Overall Machine Size: 200" Long x 88" Wide (Table & Saddle Removed)
127" Wide (Fully Assembled) x 128" High
Electrical Cabinet: 44" Long x 15" Wide x 75" High
Total Machine Weight: 23,500 Lbs.
