Location:
York, PA
Price:
$129,500 USD
Model:
CNC VTL

Specifications

Condition:
used
Year:
1993
Stock number:
15000
Size:
48"

Description

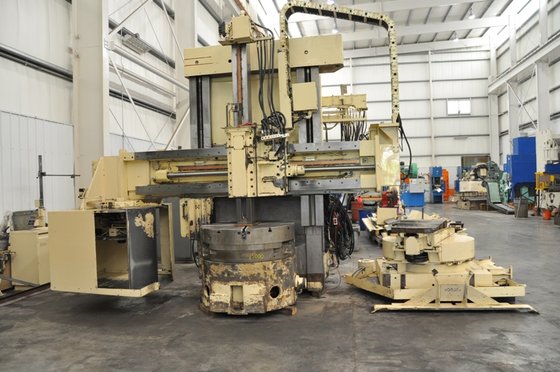

48" GIDDINGS & LEWIS CNC VERTICAL BORING MILL
PRICE: Loaded on Truck, Our Warehouse, York, PA ………… $129,500.00
Stock # 15000
Serial # 512-318-93
New 1993
(2) 48" 4-Jaw Chuck Shuttle Tables
2-Position Pallet Changer
60" Maximum Swing
Ram Head Travel on Rail: 35" Right of Table Center
Ram Head Travel on Rail: 38" Left of Table Center
Ram Vertical Travel: 50"
Maximum Height Under Rail: 53"
Maximum Height Under Ram: 61"
Rail Travel: 29"
Table Speeds: Up to 400 RPM
45-Position Tool Changer
60 Taper Tool Holders
Feed Rates: 0 to 100 IPM
Rapid Traverse: 250 IPM
Chip Conveyor
75 HP Table Drive, Wired 3 Phase, 60 Cycle, 460 Volts
G & L 8000 CNC Control Updated in 2008 by G & L to Windows XP
& the CNC Nest of Boards Changed to the Latest G & L 8000 High
Performance Board Set
see the video at
OR Click on the MORE INFORMATION button
Approx. Machine Dimensions: 298" L-R x 200" F-B x 226" High
