Location:
York, PA
Price:
$99,500 USD
Model:
600HX10

Specifications

Condition:
used
Year:
1969
Stock number:
14153
Size:
600 TON X 14'
Subcategory:
Brakes, press

Description

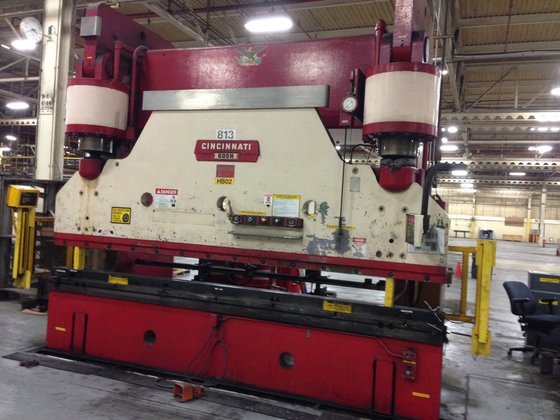

14' X 600 TON CINCINNATI HYDRAULIC PRESS BRAKE
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $99,500.00
Stock # 14153
Serial # 36802
New 1969
Model # 600Hx10
The main hydraulic cylinders of this machine have been completely rebuilt at a cost of $24,000 and are presently reinstalled on the machine so it can be seen under power.
Rated Capacity: 14' x 3/4"
Length of Bed and Ram: 14'
Distance Between Frames: 10' 5-3/4"
Stroke: 12"
Shut Height: 10"
Open Height: 22"
Throat: 14"
Bed Width: 8"
Bed Goes Below Floor Level: 32"
EQUIPPED WITH:
Lower Die Holder
Palm Buttons
Foot Pedal
Merlin Light Curtains
Autogage G24 2-Axis Back Gage
50 HP Main Motor
Wired for 3 Phase, 60 Cycle, 440 Volts
MACHINE DIMENSIONS: (Fully Disassembled)
Side Frames: 158" L-R x 80" F-B x 34" H
Bed: 172" L-R x 72" F-B x 18" H
Ram: 168" L-R x 69" F-B x 12" H
Hydraulic System: 122" L-R x 67" F-B x 38" H
Skid of Parts: 90" L-R x 40" F-B x 36" H
Total Catalogue Weight: 72,900 Lbs.
