Location:
York, PA
Price:
$4,950 USD
Manufacturer:
JONES & LAMSON
Model:
FC-14

Specifications

Condition:
used
Year:
1968
Stock number:
15039
Size:
14"
Subcategory:
Comparators

Description

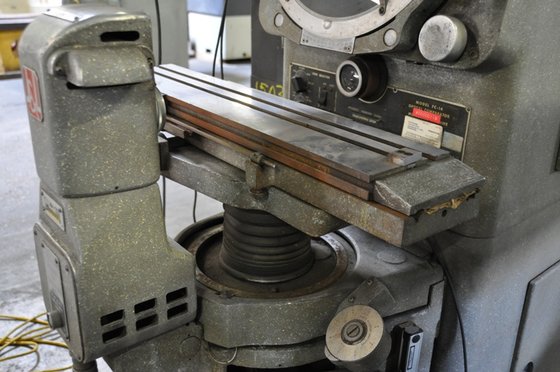

14" JONES & LAMSON OPTICAL COMPARATOR
PRICE: Loaded on Truck, Charlotte, NC ….……………… $4,950.00
Stock # 15039-P
Serial # E25578
Model: 14
New: 1968
Screen Size: 14" Diameter with Rotational Holder with Vernier Adjustment
Measuring Range: 8" Lateral and 5" Vertical, +/- 180 Degrees
Power Table Up – Down Adjustment
Rotary Dial Type Table Vertical Position Indicator with Vernier Adjustment
Micrometer Type X-Axis Table Stop System, .0001" Resolution
Table Size: 6-1/8" x 30" with (2) T-Slots
Manual Y-Axis Table Adjustment
EQUIPPED WITH:
Telecentric Stop System for Reflection – Projection – Closed
On – Off Reflection Attachment Switch
Power Lens Selector For : 10X, 20X, 31.25X, 50X, 62.5X, 100X
Lenses with Machine: (1) 10X and (1) 20X
Jones Lamson Reflection Attachment
Metronics Quadra-Chek II 2-Axis Digital Readout System
Readout on Table X-Axis and Vertical Axis, Resolution .0001"
Jones Lamson Novalite Projection Unit
(1) OGP 20X Projection Lens
(1) Kodak Ektar 31.25X Lens RM3-235...
