Location:
York, PA
Price:
$12,500 USD
Manufacturer:
OGP
Model:
OQ 30S

Specifications

Condition:
used
Stock number:
15045
Size:
30"
Subcategory:
Comparators

Description

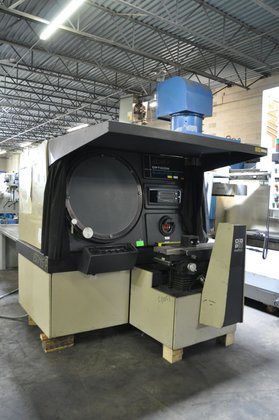

30" OGP OPTICAL COMPARATOR
PRICE: Loaded on Truck, Charlotte, NC ….……………… $12,500.00
Stock # 15045-P
Serial # 300299
Model: OQ 30S
Screen Diameter: 30"
Size of Measuring Table: 8" x 32"
Longitudinal Measuring Range: 12"
Vertical Measuring Range: 10"
Cross Travel for Focus: 3"
Angular Measuring: 360 Degree Chart Rotation
OPTICS:
Motorized 6-Len Turret with 10X, 20X, 31.25X, 50X,
62.5X & 100X Lenses
Erect & Unreversed Image Projection
Working Distance Focal Plane to Front Relay Housing: 17"
Distance Collimator to Focal Plane: 13"
Throat Clearance: 30"
Distance Optical Axis to Work Table: 2" Min. to 12" Max.
EQUIPPED WITH:
Di-Metric Plus Computational Digital Readout System
Mercury Arc Projection
Surface Illumination
Graduated Rotating Chart Ring
Power Table Travels
Joystick Table Control
Light Visor with Side Curtain
(2) Part # 24231, High Magnification Surface Illumination Concentrators
Wired for Single Phase, 60 Cycle, 115 Volt AC
Floor Space: 72" L-R x 90" F-B x 78" H...
