Location:
York, PA
Price:
$3,950 USD
Manufacturer:
Alzmetall
Model:
AB5/S

Specifications

Condition:
used
Stock number:
13257
Size:
30"

Description

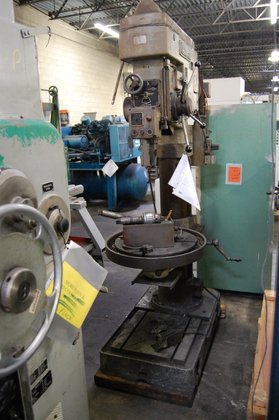

30" ALZMETALL GEARED HEAD DRILL PRESS
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $3,950.00
Stock # 13257
Serial # 1953
Year Built 19H (Yes 19H)
Model # AB5/S
Spindle Speeds: 48 to 960 RPM with High-Low Gear Range
Drilling Capacity: 2-1/2" Steel, 3" Cast Iron
Swing: 30-3/8" Maximum
(5) Power Quill Feeds: .004", .006", .008", .012" & .016" Per Revolution
Spindle Taper: #5 Morse
Quill Travel: 9-1/2"
Column Diameter: 8-11/16"
Tapping Capacity in Steel: 2"
Vertical Travel of Table on Column: 24-1/2" Via Hand Crank
Table Rotates 360 Degrees on its Own Axis (Does Not Rotate on Column)
Table Size: 25" Diameter
28" x 26" Sub Plate Bolted to Main Table
Base Work Area Size: 20" x 20" with (2) T-Slots
Approx. Distance Table Top to Spindle Nose: 6" Min. to 31" Max.
Approx. Distance Spindle Nose to Base: 55"
EQUIPPED WITH:
Adjustable Quill Depth Feed Stop
Adjustable Tapping Limit Stops Up & Down
Built In Work Light
Remote Emergency Stop Button
7-1/2 HP, 1140 RPM Motor, Wired...
