Location:
York, PA
Price:
$29,500 USD
Model:
3RH UNIVERSAL

Specifications

Condition:
used
Year:
1987
Stock number:
13086
Size:
18" X 72"

Description

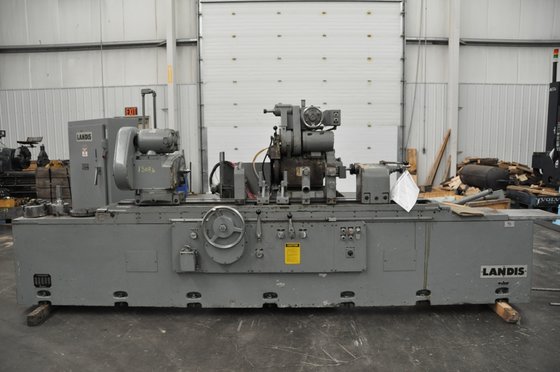

18" X 72" LANDIS UNIVERSAL CYLINDRICAL GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $29,500.00
Stock # 13086
Serial # 891-13
New 1/1987
Model # 3RH Universal
Swing Over Table: 19-1/2"
Maximum Distance Between Centers: 74"
Grinding Wheel Size: 14" x 1-1/2" x 5" Bore
Table Swivels: Front and Back 5 Degrees / 15 Degrees (1"/3" per foot)
Wheelhead Can Swivel Up to 90 Degrees and is Repositionable on a Secondary Slide
Wheelhead Can Be Setup for Compound Angles or Steep Angle Without
Dressing an Angle on the Grinding Wheel
Variable Hydraulic Table Traverse Speed Rate: 2 to 240 IPM
Variable Table Tarry at Each End of Stroke
No Plunge Grinding Cycle
EQUIPPED WITH:
Live and Dead Spindle Type Workhead
Workhead Swivels Up to 90 Degrees
Workhead Spindle Nose Taper: A2-6
Workhead Spindle Internal Taper: #14 Jarno
Workhead Motor is 3/4 HP DC with VEE-ARC Variable Speed Drive
Workhead Speed Range: 25 to 125 RPM Low Range, 50 to 100 RPM High Range
Workhead Speed Range Change...
