Location:
York, PA
Price:
$9,500 USD
Model:
UR

Specifications

Condition:
used
Year:
1965
Stock number:
13171
Size:
19" X 78"

Description

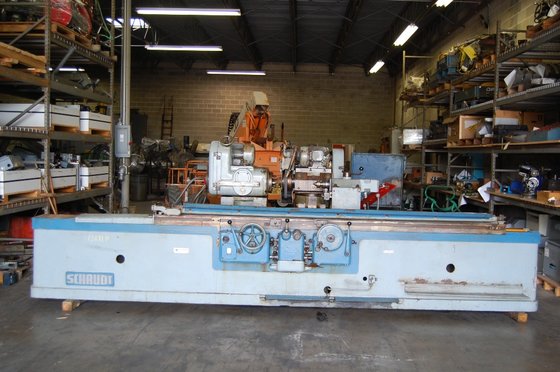

19" X 78" SCHAUDT UNIVERSAL CYLINDRICAL GRINDER
PRICE: Loaded on Truck, Our Warehouse, York, PA …… $9,500.00
Stock # 13171-P
Serial # 113954
Model: UR
New Date: Circa 1965
Swing Over the Bed: 19-1/2"
Plunge Grinding
Pick Feed at End of Table Stroke
Adjustable Table Tarry at End of Table Stroke
Work Head is Variable Speed Plus 10-Position Step Pulley
Variable Hydraulic Table Traverse
Maximum Wheel Diameter: 16" x Presently 1" Wide
Tailstock Quill Diameter: 2-3/4" with #5 Morse Taper
Wheel Head Rotates 180 Degrees to Bring Internal Grinding
Spindle into the Working Position
ID Grinding Spindle Rated to Maximum 10,000 RPM
Main Table Swivels 4 Degrees Front & 6 Degrees to the Rear
Diamond Dresser Attached to Tailstock
Hard Bed Ways (Very Good Condition)
Main Grinding Wheel Motor: Approx. 5 HP, 3/60/240-480 (Presently 440V)
ID Spindle Motor: 3 HP, 3/60/240-480
Work Head Motor: Approx. 3 HP, 3/60/240-480
Coolant Pump: Approx. 1/4 HP, 3/60/240-480
Coolant System has 16" Wide...
